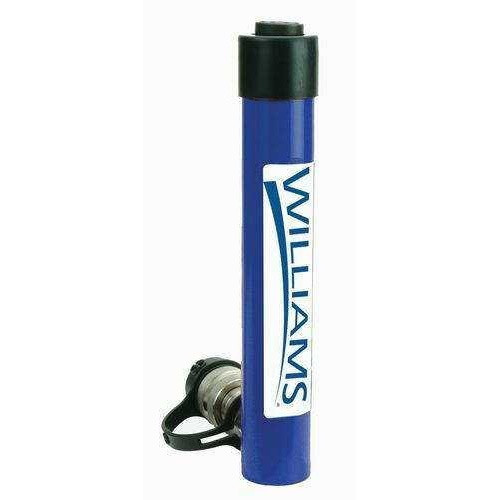

9.09" Stroke Williams 5T Single Acting Cylinder - 6C05T09

9.09" Stroke Williams 5T Single Acting Cylinder - 6C05T09

$314.50 $620.00
(You save $305.50)
Model #
6C05T09
Scale:
5 Ton

Description

Williams

The 6C05T09 9.09" Stroke Williams 5T Single Acting Cylinder - 6C05T09 comes with the Williams Industrial Brands Limited lifetime warranty.

9.09

5T Single Acting Cylinder 9''

Features

  • 39 models
  • Internal plunger threads
  • Snap in grooved saddles
  • Rod wiper seals out dirt and contamination
  • Collar fi xture threads
  • Two base mounting holes on most models
  • High strength steel construction from gun drilled solid bar
  • High fl ow 3/8" NPTF couplers
  • Collar thread protector
  • One piece high grade alloy bearing for side load protection and long life
  • Polyurethane cup seal provides optimum performance
  • Industrial hard chrome plated ram helps prevent rust and corrosion
  • Solid steel cylinder body
  • Heavy duty return spring provides quicker retraction
  • Ideal for lifting and pressing
  • Maximum working pressure: 10,000 psi / 700 bar
  • Country of Origin : Taiwan
  • Cylinder Capacity (tons) : 5
  • Stroke (in) : 9.09
  • Cylinder Effective Area (in2) : 1.00
  • Pressure at Capacity (psi) : 10,000
  • Oil Capacity (in3) : 9.09
  • Collapsed Height A (in) : 12.72
  • Extended Height B (in) : 21.81
  • Cylinder Bore Dia. C (in) : 1.13
  • Outside Dia. D (in) : 1.50
  • Plunger Dia. E (in) : 1.00
  • Saddle Dia. F (in) : 0.98
  • Base to Inlet Port (in) : 0.79
  • Collar Thread (in) : 1 1/2 -16
  • Collar Thread Length (in) : 1.10
  • Plunger Internal Thread (in) : 3/4"-16UNF
  • Plunger Thread Length (in) : 0.63
  • Base Mounting Hole Bolt Circle (in) : 1.00
  • Base Mounting Hole Thread (in) : 1/4" - 20UNC
  • Base Mounting Hole Thread Depth (in) : 0.55
