0.99" Stroke Williams 15T Single Acting Cylinders - 6C15T01

0.99" Stroke Williams 15T Single Acting Cylinders - 6C15T01

Now:$541.10
MSRP:$1,156.20
(You save $615.10 )
  • SKU:JHW6C15T01
  • UPC:662459922755
  • Condition:New
  • Scale:15 Ton
3 In Stock
Product Description

Williams

The 6C15T01 0.99" Stroke Williams 15T Single Acting Cylinders - 6C15T01 comes with the Williams Industrial Brands Limited lifetime warranty.

0.99

15T Single Acting Cylinder 1''F

Features

  • 39 models
  • Internal plunger threads
  • Snap in grooved saddles
  • Rod wiper seals out dirt and contamination
  • Collar fi xture threads
  • Two base mounting holes on most models
  • High strength steel construction from gun drilled solid bar
  • High fl ow 3/8" NPTF couplers
  • Collar thread protector
  • One piece high grade alloy bearing for side load protection and long life
  • Polyurethane cup seal provides optimum performance
  • Industrial hard chrome plated ram helps prevent rust and corrosion
  • Solid steel cylinder body
  • Heavy duty return spring provides quicker retraction
  • Ideal for lifting and pressing
  • Maximum working pressure: 10,000 psi / 700 bar
  • Country of Origin : Taiwan
  • Cylinder Capacity (tons) : 15
  • Stroke (in) : 0.99
  • Cylinder Effective Area (in2) : 3.14
  • Pressure at Capacity (psi) : 9,550
  • Oil Capacity (in3) : 3.11
  • Collapsed Height A (in) : 4.88
  • Extended Height B (in) : 5.87
  • Cylinder Bore Dia. C (in) : 2.00
  • Outside Dia. D (in) : 2.75
  • Plunger Dia. E (in) : 1.63
  • Saddle Dia. F (in) : 1.50
  • Base to Inlet Port G (in) : 0.98
  • Collar Thread H (in) : 2 3/4 -16
  • Collar Thread Length L (in) : 1.18
  • Plunger Internal Thread J (in) : 1"-8UNC
  • Plunger Thread Length K(in) : 0.98
  • Base Mounting Hole Bolt Circle X (in) : 1.88
  • Base Mounting Hole Thread Y (in) : 3/8"-16UNC
  • Base Mounting Hole Thread Depth Z (in) : 0.51

Reviews

related Products

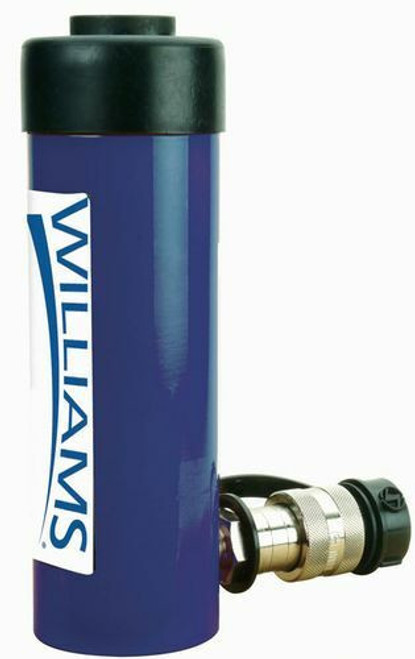

2.01" Stroke Williams 15T Single Acting Cylinders - 6C15T02
