1/2" Dr 15-150 Ft Lbs Digitool Electronic Torque & Angle Meter - SPA-1503 - Image 1

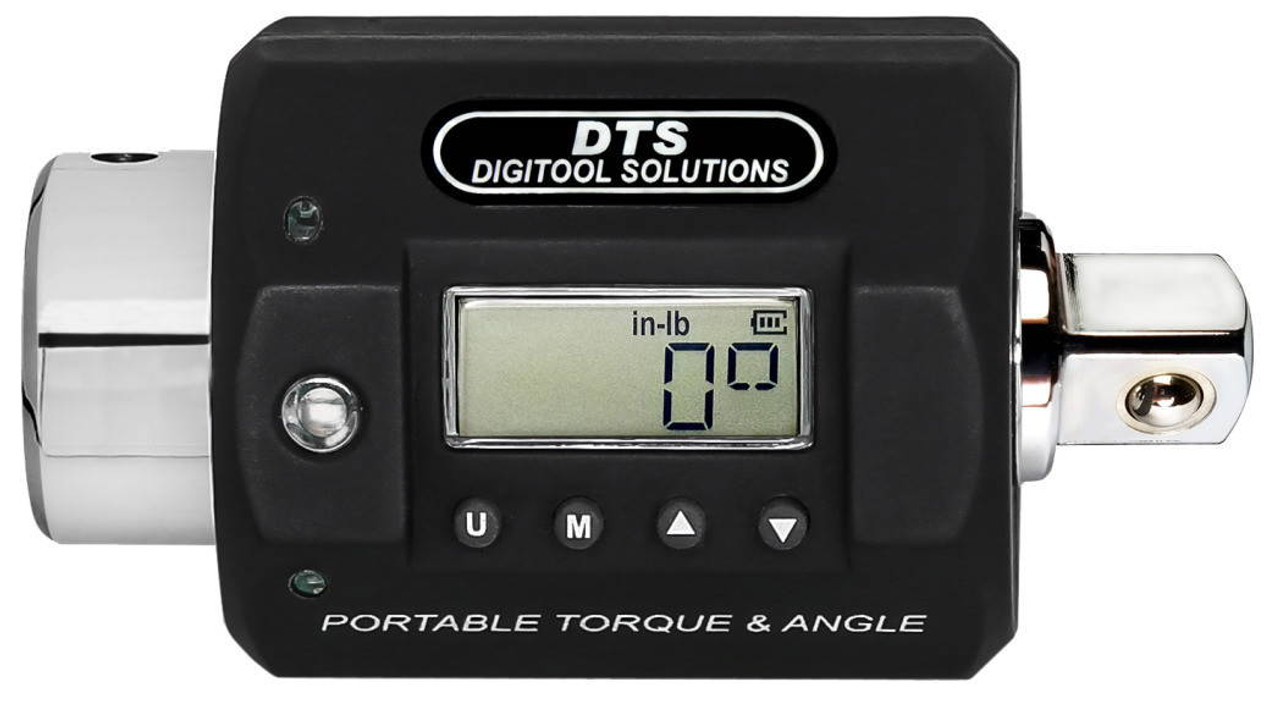

1/2" Dr 6-150 Ft Lbs Digitool Electronic Torque & Angle Meter - SPA-1503

$310.75 $493.26
(You save $182.51)
Model #
SPA-1503
Condition:
New
Driver Size:
1/2"
English Range:
180 - 1800 In Lbs
English Range:
15 - 150 Ft Lbs
Metric Range:
20 - 200 Nm
Length:
3.75" x 2"
Weight:
1.5-lb | 0.68-kg
Accuracy:
± 1%
Scale:
In Lbs
Scale:
Ft Lbs
Scale:
Nm
Feature:
Torque & Angle

Description



The 1/2" Dr SPA-2503 Digitool Solutions Electronic Portable Torque Angle Pro offers an English range of 6 – 150 Ft Lbs and 72 – 1800 In Lbs and a metric range of 8 – 200 Nm.

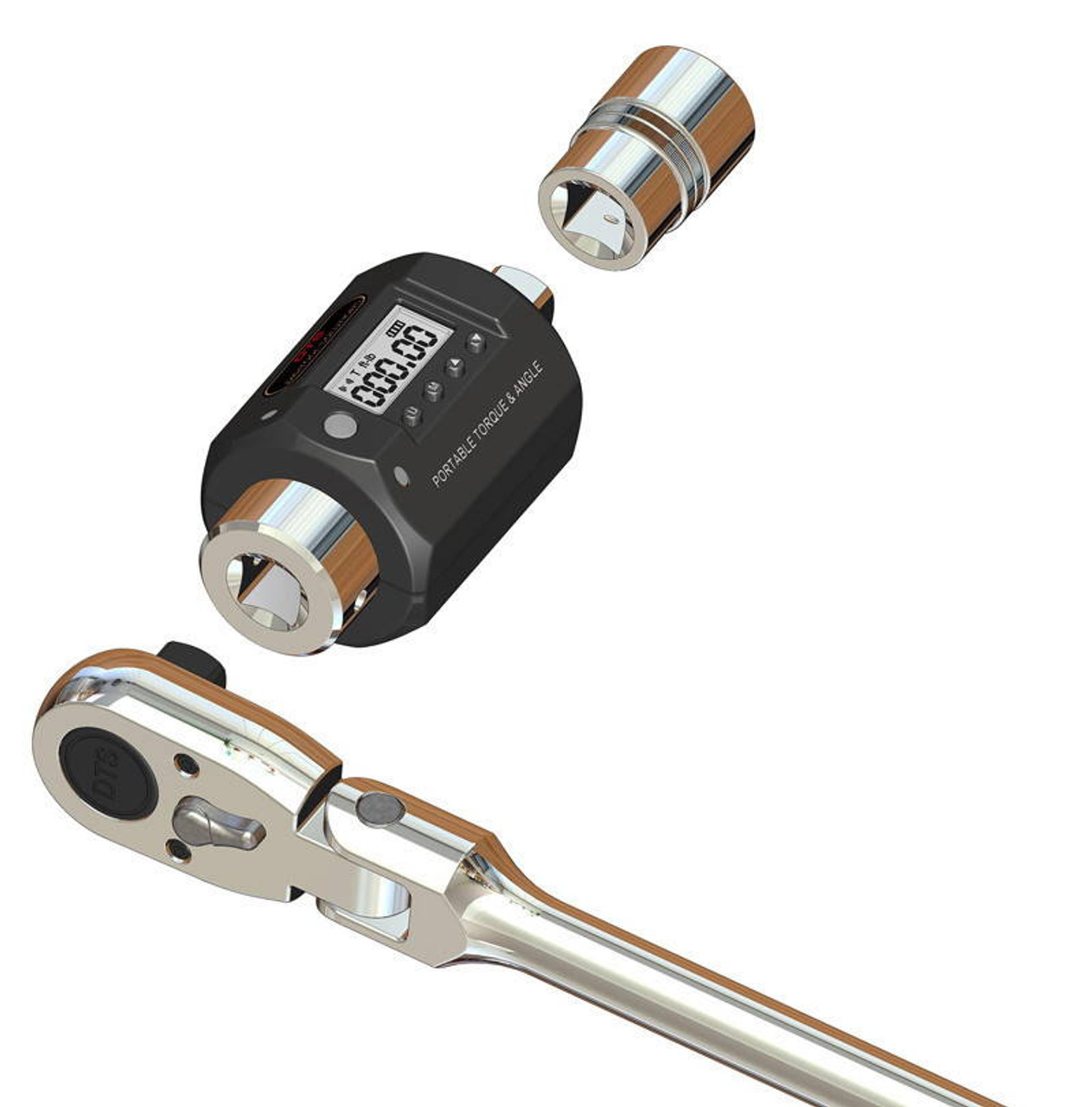

The “SPA” series of self-contained electronic torque and angle meter pro is built on a Digitool Solutions’ exclusive rotatable platform. The Digitool SPA-1503 electronic torque & angle meter transforms any wrench or non-impact driver into a high-precision torque and angle instrument. A high-contrast LCD display and simple push-button preset adjustment provide an intuitive user interface for torque and/or angle specification settings. Tri-colored visual indicators, an audible signal and a tactile vibration alert signal early warning and preset attainment of torque and angle application as well as over-load conditions. Built on a robust square-drive extension and installed between the tool and the work, these meters are free of hand-hold position error that is typical of common torque wrenches.

Six Ranges Function in Both CW and CCW Directions

Six models, with square-drives covering 2.5 ft-lb to 600 ft-lb in six ranges function in both CW and CCW directions while maintaining torque measurement accuracy within ±1% between 10% to 100% of full scale and angle measurement accuracy to +/-1° of rotation. The meter is usable down to 4% of full-scale torque setting while retaining +/-3% display accuracy. With extra-precision torque sensing and higher resolution analog-to digital conversion, the Digitool SPA-1503 electronic torque & angle meter is intended for critical industrial, aerospace, laboratory and quality control applications. The sturdy handle and nylon housing are robust enough for tough field use. A built-in rechargeable Li-Ion battery system provides 200-hours of continuous operation. A global 110-240VAC wall transformer is included.

This meter, used with any wrench, breaker bar, hand driver or non-impacting power tool, is compliant with both ISO and ASME B107-28 (Type 1) Standards. A certificate of calibration with N.I.S.T. traceability can be provided if requested.

Features:

  • ±1% accuracy of torque reading from 10% – 100%
  • Torque applicable in both CW & CCW
  • Torque starts at 4% of full scale accuracy ±3%
  • ±1° Precision at normal speed of rotation @360°
  • Angle preset from 5° to 360°
  • Angle memory during ratcheting
  • Usable from 5% of full scale with ±3% of reading
  • Warning LED, Buzzer and Vibration
  • Li-Ion Polymer rechargeable battery
  • Up to 200 hours of continuous operation
  • Charger adapter 110-240V AC included
  • Self contained Torque & Angle meter
  • Easy to use. No Training needed
  • Auto power off after 2 minutes
  • Eliminates hand position error
  • Square Drive: 1/2-inch
  • Torque Range:
    • 6 - 150 ft-lb
    • 72 - 1800 in-lb
    • 8 - 200 Nm
  • Total Length:
    • 3.75-inch x 2-inch
    • 95-mm x 50.8-mm
  • Weight: 1.5-lb | 0.68-kg




Warranty Information

Digitool Solutions Products are covered by a one (1) year Limited Liability Warranty. Products under warranty should be returned for repair / replacement to: Digitool Solutions LLC 13905 Ramona Ave. Unit # A Chino, CA. 91710 sales@digitoolsolutions.com Tel: 909-591-9581 Fax: 909-233-6491
