Product Description

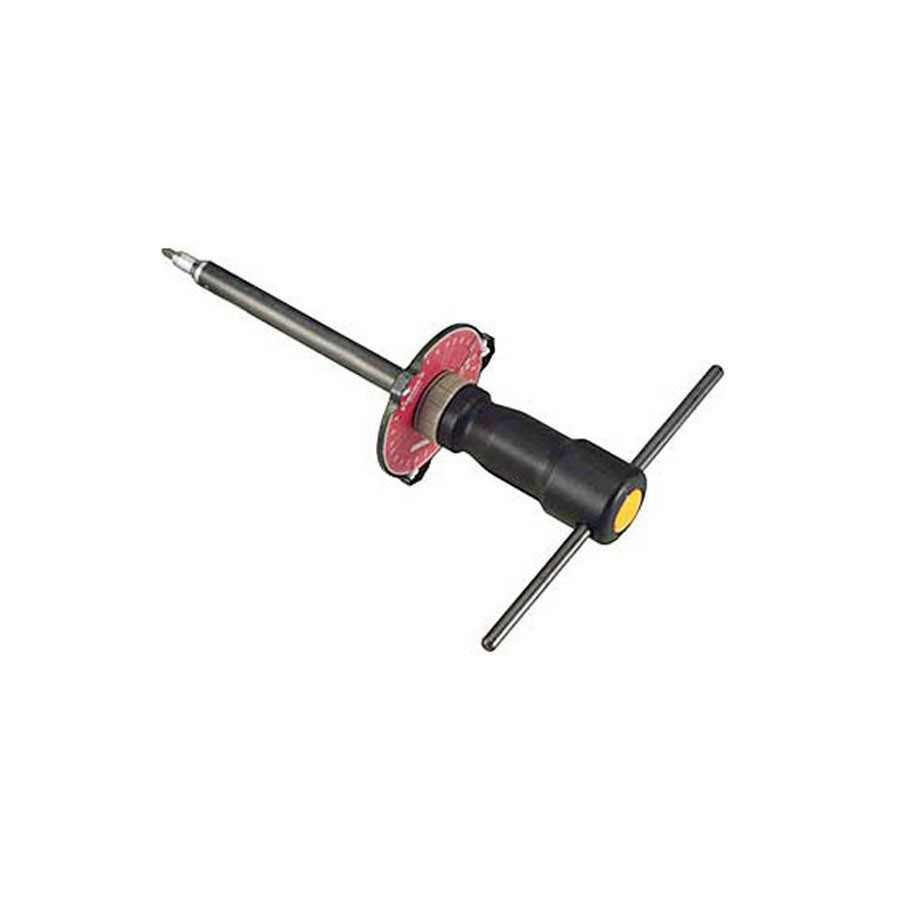

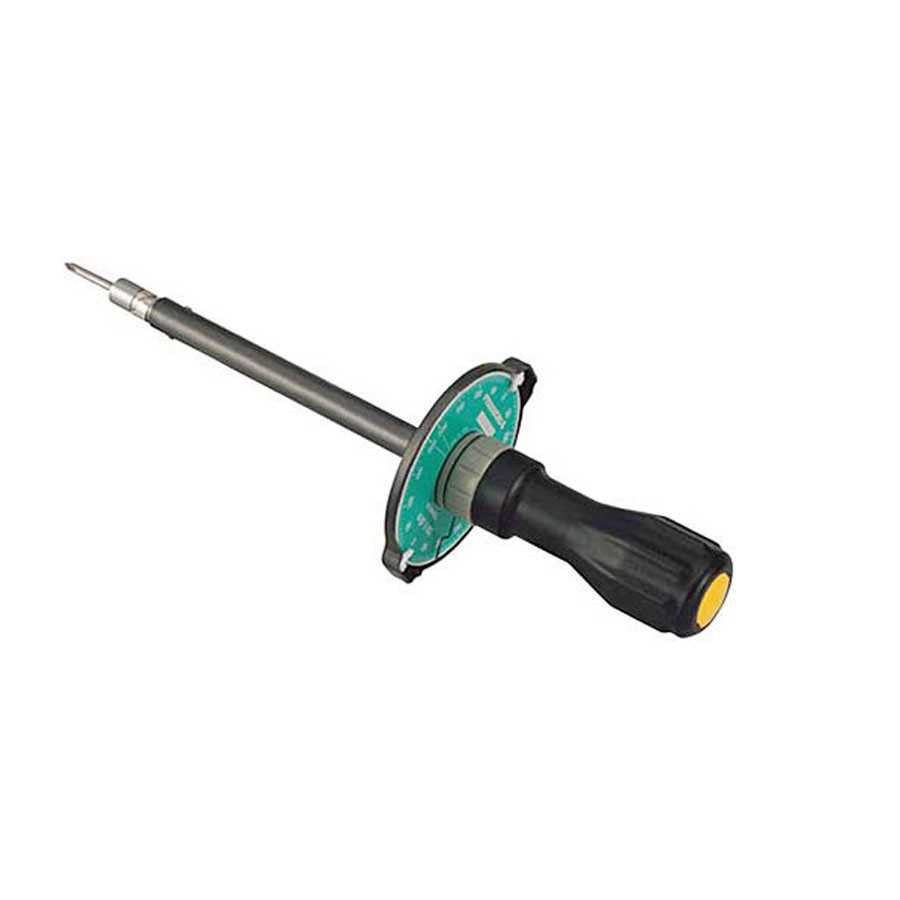

The Tohnichi 160FTD2-A-S Dial Torque Screwdriver accepts universal 1/4 Inch drive bits and has an English range of 20 - 140 In Lbs.
Features
- Direct reading torque screwdriver ideal for inspection.
- Accuracy ± 3%
- Bi-Directional Loading
- Brightly Colored Contrasting Scale for Easy Reading
- Protected Main Pointer
- Easily Adjust Zero Point with Press and Rotate Scale Plate
- Memory pointer captures peak torque.
- Black Resin Comfort Grip
- Accepts standard 1/4" hex root size bits (sold separately).
- FTD8N2-S and FTD16N2-S have 1/4 sq drive and come with Auxiliary tightening tool and bits as standard accessory.

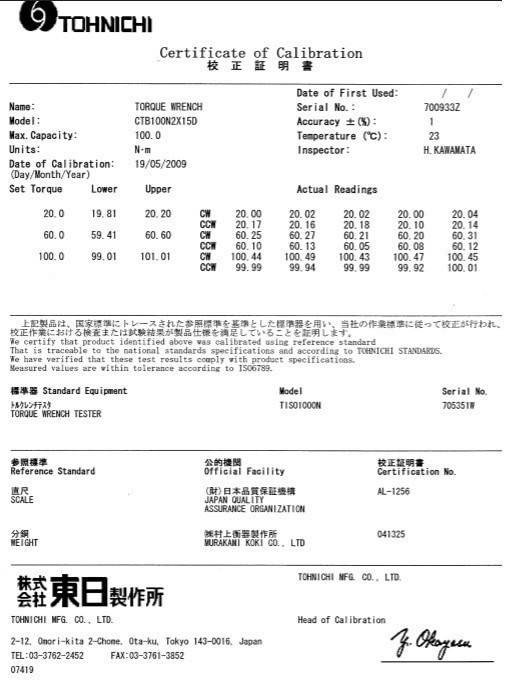

- Includes Tohnichi Factory Certificate of Calibration
- (NIST Traceable Certificate of Calibration offered for additional fee)
Specifications
| Accuracy ± 3% | |||||||||||||
| AMERICAN MODEL | 160FTD2-A-S | ||||||||||||
| TORQUE RANGE [ozf . in/lbf . in] | MIN.~MAX. | 20~140 | |||||||||||
| GRAD. | 5 | ||||||||||||
| APPLICABLE SCREW | SMALL SCREW | M8 | |||||||||||
| TAPPING SCREW | M6(M7) | ||||||||||||
| DIMENSION [mm] | OVERALL LENGTH | L' | 338 | ||||||||||
| GRIP | D1 | 50 | |||||||||||
| BODY | D2 | 112 | |||||||||||
| D3 | 18 | ||||||||||||
| D4 | |||||||||||||
| L1 | 188 | ||||||||||||
| L2 | 150 | ||||||||||||
| WEIGHT [kg] | 0.93 | ||||||||||||
| SCALE PLATE COLOR | BLUE | ||||||||||||
| ACCESSORY BIT | + | #3 | |||||||||||
| -thickness X width | 1.2x8 | ||||||||||||
Made in Japan
Experience precision and control with the Tohnichi 1/4" Dr 20 - 140 In Lbs Dial Torque Driver - 160FTD2-A-S. This high-quality torque screwdriver is designed for both professionals and DIY enthusiasts, ensuring accurate torque application for all your fastening needs.
Engineered in Japan, the 160FTD2-A-S combines innovative features with exceptional durability. With a torque range of 20 to 140 In Lbs, this tool is perfect for inspection applications, delivering reliability you can trust.
- Direct reading torque screwdriver ideal for inspection.
- Accuracy ± 3% for precision engineering.
- Bi-Directional Loading for versatile use.
- Brightly colored contrasting scale for easy reading.
- Protected main pointer to withstand wear.
- Easily adjust zero point with a simple press and rotate scale plate.
- Memory pointer captures peak torque for effective results.
- Black resin comfort grip for enhanced usability.
- Accepts standard 1/4" hex root size bits (sold separately).
- Includes Tohnichi factory certificate of calibration.
- NIST traceable certificate of calibration available for an additional fee.
Unlock the potential of precision torque fastening with the Tohnichi 160FTD2-A-S Dial Torque Driver. It’s not just a tool; it's your pathway to professional-grade results.
