1/4" Dr 5 - 40 In Lbs Tohnichi Dial Torque Driver - 40FTD2-A-S
1/4" Dr 5 - 40 In Lbs Tohnichi Dial Torque Driver - 40FTD2-A-S
1/4" Dr 5 - 40 In Lbs Tohnichi Dial Torque Driver - 40FTD2-A-S

1/4" Dr 5 - 40 In Lbs Tohnichi Dial Torque Driver - 40FTD2-A-S

Now:$283.62
MSRP:$324.13
(You save $40.52 )
  • SKU:40FTD2-A-S
  • Condition:New
  • Drive Size:1/4 Inch
  • Range In Lbs:5 - 40
  • Accuracy:3%
  • Made In:Japan
Product Description

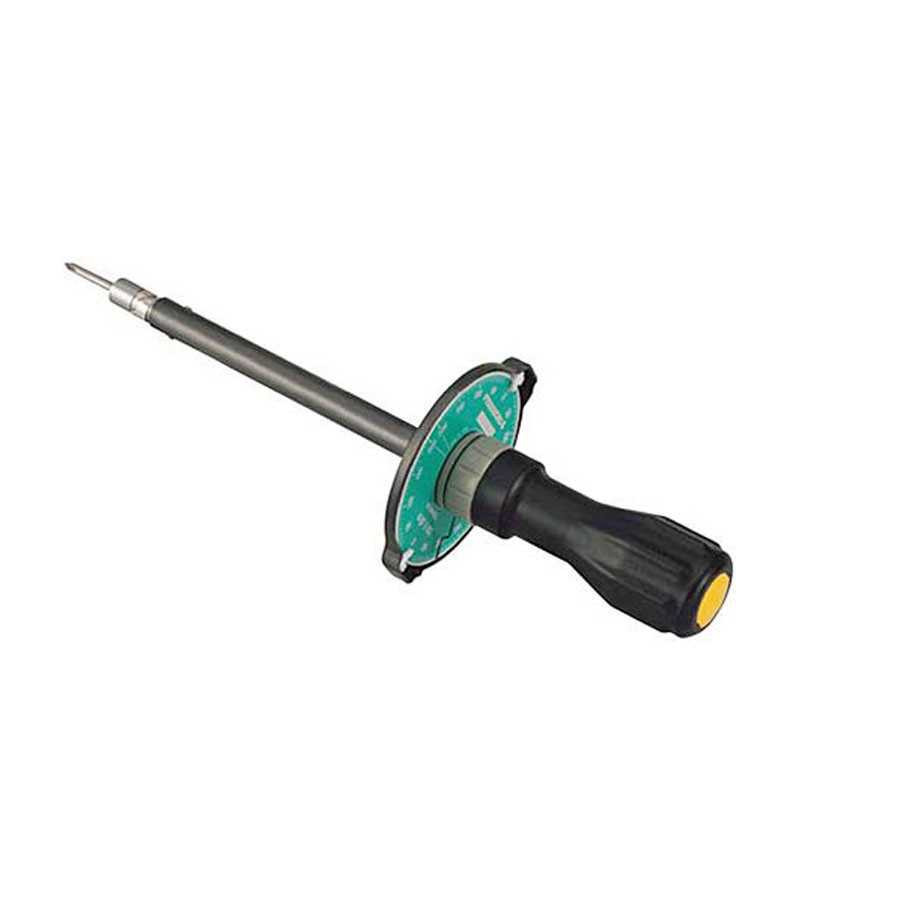

The 40FTD2-A-S Tohnichi Dial Torque Drive accepts universal 1/4 Inch drive bits and has an English range of 5 - 40 In Lbs.

Features

  • Direct reading torque screwdriver ideal for inspection.
  • Accuracy ± 3%
  • Bi-Directional Loading
  • Brightly Colored Contrasting Scale for Easy Reading
  • Protected Main Pointer
    • Easily Adjust Zero Point with Press and Rotate Scale Plate
  • Memory pointer captures peak torque.
  • Black Resin Comfort Grip
  • Accepts standard 1/4" hex root size bits (sold separately).
  • FTD8N2-S and FTD16N2-S have 1/4 sq drive and come with Auxiliary tightening tool and bits as standard accessory.
  • Includes Certificate of Calibration
  • Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type I Class D.

Specifications

Accuracy ± 3%
AMERICAN MODEL 40FTD2-A-S
TORQUE RANGE
[ozf . in/lbf . in]
MIN.~MAX. 5~40
GRAD. 1
APPLICABLE SCREW SMALL SCREW M5
TAPPING SCREW M4
DIMENSION
[mm]
OVERALL LENGTH L' 272
GRIP D1 38
BODY D2 90
D3 13
D4 11
L1 157
L2 115
WEIGHT [kg] 0.37
SCALE PLATE COLOR PURPLE

product dimensions

Made in Japan

Warranty
Reviews

related Products

1/4" Dr 20 - 140 In Lbs Tohnichi Dial Torque Driver - 160FTD2-A-S1/4" Dr 20 - 140 In Lbs Tohnichi Dial Torque Driver - 160FTD2-A-S
Quickview
Whishlist

1/4" Dr 20 - 140 In Lbs Tohnichi Dial Torque Driver - 160FTD2-A-S

Now:$595.60
MSRP:$680.68
(You save $85.08 )
Choose Options
1/4" Dr 3 - 20 In Lbs Tohnichi Dial Torque Driver - 20FTD2-A-S1/4" Dr 3 - 20 In Lbs Tohnichi Dial Torque Driver - 20FTD2-A-S
Quickview
Whishlist

1/4" Dr 3 - 20 In Lbs Tohnichi Dial Torque Driver - 20FTD2-A-S

Now:$267.41
MSRP:$305.61
(You save $38.20 )
Choose Options
1/4" Dr 10 - 70 In Lbs Tohnichi Dial Torque Driver - 80FTD2-A-S1/4" Dr 10 - 70 In Lbs Tohnichi Dial Torque Driver - 80FTD2-A-S
Quickview
Whishlist

1/4" Dr 10 - 70 In Lbs Tohnichi Dial Torque Driver - 80FTD2-A-S

Now:$583.59
MSRP:$645.96
(You save $62.37 )
Choose Options

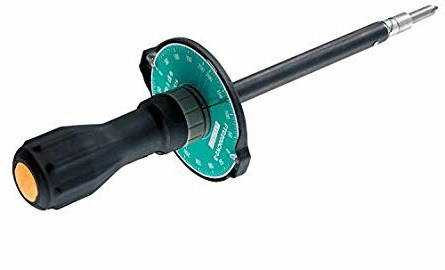

1/4" Dr .5 - 5 In Lbs Tohnichi Dial Torque Driver - 5FTD2.A-S1/4" Dr .5 - 5 In Lbs Tohnichi Dial Torque Driver - 5FTD2.A-S
