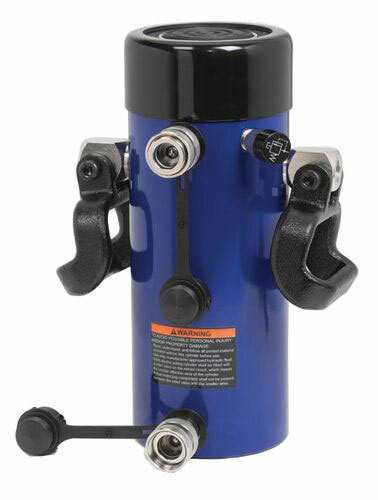

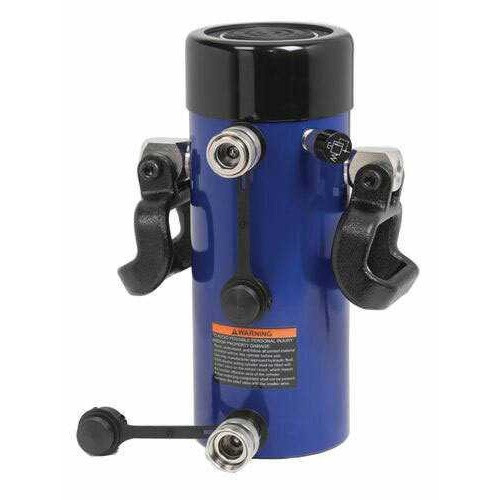

10.04" Stroke Williams 10T Double-Act Cylinder - 6CD10T10
Now:$1,184.48
MSRP:$2,611.31
(You save $1,426.83 )
- SKU:JHW6CD10T10
- UPC:662459946034
- Condition:New
- Scale:10 Ton
Product Description
The 6CD10T10 10.04" Stroke Williams 10T Double-Act Cylinder - 6CD10T10 comes with the Williams Industrial Brands Limited lifetime warranty.
10T Double Action Cylinder 10" Str
Features
- Rod wiper seals out dirt and contamination
- High strength steel construction from gun drilled solid bar
- High fl ow 3/8" NPTF couplers
- One piece high grade alloy bearing for side load protection and long life
- Ideal for pushing and pulling
- Maximum working pressure: 10,000 psi / 700 bar
- Country of Origin : Taiwan
- Cylinder Capacity (tons) : 10
- Stroke (in) : 10.04
- Maximum Cylinder Capacity Push (ton) : 11.4
- Maximum Cylinder Capacity Pull (ton) : 3.8
- Cylinder Effective Area Push (in2) : 2.23
- Cylinder Effective Area Pull (in2) : 0.74
- Oil Capacity Push (in3) : 22.41
- Oil Capacity Pull (in) : 7.47
- Collapsed Height A (in) : 16.14
- Extended Height B (in) : 26.18
- Cylinder Bore Dia. C (in) : 1.69
- Outside Dia. D (in) : 2.87
| DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. E (in) | Saddle Dia. F (in) | Base to Adv. Port G (in) | Top to Return Port H (in) | Plunger Internal Thread J (in) | Plunger Thread Length K (in) | Collar Thread L (in) | Collar Thread Length M (in) | Base Mounting Hole Bolt Circle X (in) | Base Mounting Hole Thread Y (in) | Base Mounting Hole Thread Depth Z (in) | Weight (lbs) |
| 1.37 | 1.38 | 1.42 | 2.09 | 1 - 8 | 0.98 | 2 1/4 - 14 | 1.02 | N/A | N/A | N/A | 26.7 |
