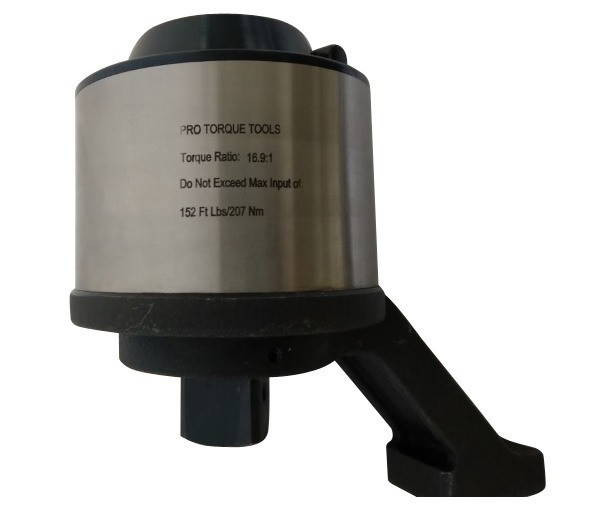

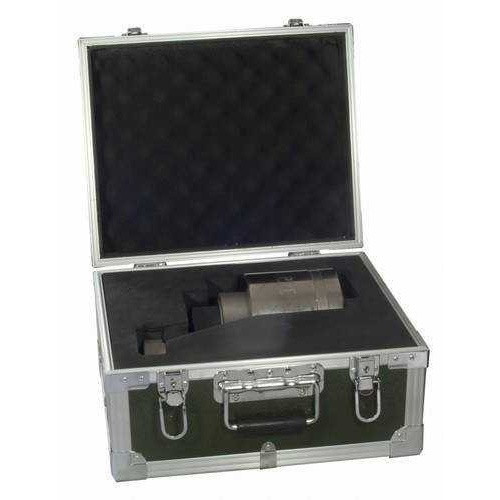

1475 Ft Lbs 1" Dr PTT 16.9:1 Torque Multiplier with Reaction Arm - TM-20W
- SKU:TM-20W
- Condition:New
- Drive Size:1 Inch
- Torque Ratio:16.9:1
- Max Ft Lbs:1475
Product Description
The Pro Torque Tools TM-20W Planetary Gear Torque Multiplier offers a torque ratio of 16.9:1 and a maximum output of 1,476 Ft Lbs or 2,000 Nm with a 40 degree reaction arm.
| Anywhere there's a high torque, confined space situation, a torque multiplier should be close at hand. Not only will a torque multiplier help make sure your fasteners are properly tightened, but it will help improve worker efficiency - two things which add up to an increase in productivity. Through a relatively simple arrangement of gears a torque multiplier makes the toughest nut-turning jobs a snap. Generally, a torque multiplier is needed when a prescribed amount of torque must be applied to threaded fasteners having a diameter of one inch or more, and/or when fasteners must be accurately tightened in a work space which precludes the use of a torque wrench with a long arm length. Gear Ratios on torque multipliers can have up to a 10% +/- variance due to the friction within the gears that generate the output force. They will be most accurate when used between 50-75% of their max output. Torque levels at the high end of the range will suffer from friction loss and have a reduction in the actual output ratio. For frequently used multipliers, you should choose a model that has a max range that is at least 25% above your intended max output. |
| Product Code | Max Output Nm | Max Output Ft Lbs | Input Cap | Gear Ratio | Output Dr | Max Input Nm | Max Input Ft Lbs | Height | Width | Weight |
| TM-20W | 2000 Nm. | 1476 Ft. Lbs. | 1/2" | 16.9:1 | 1" | 139 Nm. | 103 Ft. Lbs. | 4.13" | 3.17" | 7 Lbs |
Made In China
