Product Description

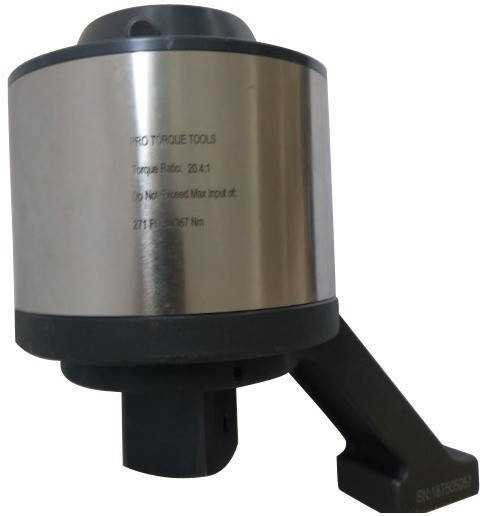

The Pro Torque Tools TM-75W Planetary Gear Torque Multiplier offers a torque ratio of 20.4:1 and a maximum output of 5,531 Ft Lbs or 7,500 Nm with a 40 degree reaction arm.
| Anywhere there's a high torque, confined space situation, a torque multiplier should be close at hand. Not only will a torque multiplier help make sure your fasteners are properly tightened, but it will help improve worker efficiency - two things which add up to an increase in productivity. Through a relatively simple arrangement of gears a torque multiplier makes the toughest nut-turning jobs a snap. Generally, a torque multiplier is needed when a prescribed amount of torque must be applied to threaded fasteners having a diameter of one inch or more, and/or when fasteners must be accurately tightened in a work space which precludes the use of a torque wrench with a long arm length. Gear Ratios on torque multipliers can have up to a 10% +/- variance due to the friction within the gears that generate the output force. They will be most accurate when used between 50-75% of their max output. Torque levels at the high end of the range will suffer from friction loss and have a reduction in the actual output ratio. For frequently used multipliers, you should choose a model that has a max range that is at least 25% above your intended max output. |
| Product Code | Max Output Nm | Max Output Ft Lbs | Input Cap | Gear Ratio | Output Dr | Max Input Nm | Max Input Ft Lbs | Height | Width | Weight |
| TM-75W | 7500 Nm. | 5531 Ft. Lbs. | 1/2" | 20.4:1 | 1.5" | 367 Nm. | 271 Ft. Lbs. | 7.7" | 4.75" | 28.6 Lbs |
Made In China
