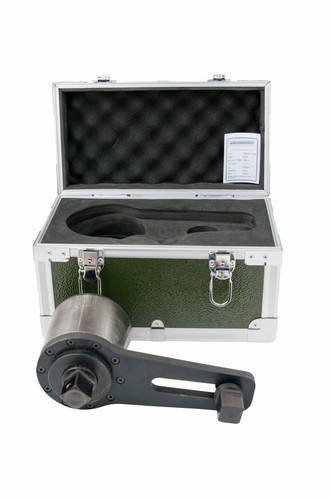

5,531 Ft Lbs 1 1/2" Dr 20.4:1 PTT Planetary Gear Torque Multiplier With Reaction Plate - TM-75F
5,531 Ft Lbs 1 1/2" Dr 20.4:1 PTT Planetary Gear Torque Multiplier With Reaction Plate - TM-75F
5,531 Ft Lbs 1 1/2" Dr 20.4:1 PTT Planetary Gear Torque Multiplier With Reaction Plate - TM-75F

5,531 Ft Lbs 1 1/2" Dr 20.4:1 PTT Planetary Gear Torque Multiplier With Reaction Plate - TM-75F

Now:$4,561.72
MSRP:$4,952.19
(You save $390.47 )
  • SKU:TM-75F
  • Condition:New
  • Drive Size:1 1/2 Inch
  • Torque Ratio:20.4:1
  • Weight Lbs:28
  • Max Ft Lbs:5531

The selected product combination is currently unavailable.

Shipped by date ordered. Order now for earliest delivery when this item is back in stock.

Product Description

The Pro Torque Tools TM-75F Planetary Gear Torque Multiplier offers a torque ratio of 20.4:1 and a maximum output of 5,531 Ft Lbs or 7,500 Nm with a 90 degree reaction plate & sliding drive.

Anywhere there's a high torque, confined space situation, a torque multiplier should be close at hand.

Not only will a torque multiplier help make sure your fasteners are properly tightened, but it will help improve worker efficiency - two things which add up to an increase in productivity.

Through a relatively simple arrangement of gears a torque multiplier makes the toughest nut-turning jobs a snap.

Generally, a torque multiplier is needed when a prescribed amount of torque must be applied to threaded fasteners having a diameter of one inch or more, and/or when fasteners must be accurately tightened in a work space which precludes the use of a torque wrench with a long arm length.

Gear Ratios on torque multipliers can have up to a 10% +/- variance due to the friction within the gears that generate the output force. They will be most accurate when used between 50-75% of their max output. Torque levels at the high end of the range will suffer from friction loss and have a reduction in the actual output ratio. For frequently used multipliers, you should choose a model that has a max range that is at least 25% above your intended max output.

TM-75F
7500 Nm 5,531 Ft Lbs 1/2" 20.4:1 1 1/2" 308 Nm 227 Ft Lbs 6.8" 4.8" 28 Lbs

 TMF1.jpgTMF2.jpg TMF3.jpg

 Dimensions (mm)


Made In China
