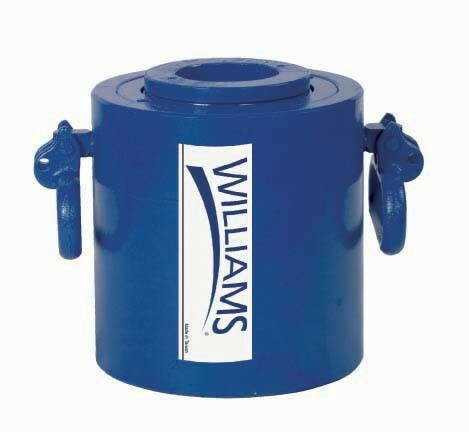

2" Stroke Williams 20T Single Acting Cylinders - 6CH20T02
Now:$1,362.98
MSRP:$3,078.10
(You save $1,715.12 )
- SKU:JHW6CH20T02
- UPC:662459922991
- Condition:New
- Scale:20 Ton
Shipped by date ordered. Order now for earliest delivery when this item is back in stock.
Product Description
The 6CH20T02 2" Stroke Williams 20T Single Acting Cylinders - 6CH20T02 comes with the Williams Industrial Brands Limited lifetime warranty.
20T Hollow Hole Cylinder 2" Stroke
Features
- 6 standard models
- Ideal for some pulling and pushing applications
- Heavy duty compression spring
- Dual wipers help prevent contamination
- Collar thread protector
- High flow coupler with dust cap
- Country of Origin : Taiwan
- Cylinder Capacity (tons) : 20
- Stroke (in) : 2.01
- Cylinder Effective Area (in2) : 4.90
- Pressure at Capacity (psi) : 8,167
- Oil Capacity (in3) : 9.83
- Min. Height A (in) : 9.38
- Max. Height B (in) : 8.39
- O.D. D (in) : 3.92
- Plunger I.D. C (in) : 1.063
- Plunger O.D. E (in) : 2.15
- Plunger Internal Thread J (in) : 1 9/16"-16UN
- Internal Thread Length K (in) : 0.75
| DIMENSION | ||||||
|---|---|---|---|---|---|---|
| Collar Thread Dia. H (in) | Collar Thread Lgth. L (in) | Base to Inlet Port G (in) | Base Mounting Hole Bolt Circle X (in) | Base Mounting Hole Thread Y (in) | Base Mounting Hole Thread Depth Z (in) | Weights (lbs) |
| 3 7/8 -12 | 1.50 | 0.75 | 3.25 | 3/8"-16UNC | 0.37 | 15.9 |
