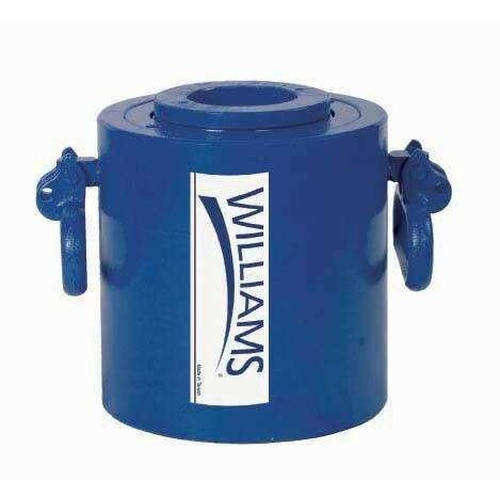

6.13" Stroke Williams 30T Single Acting Cylinders - 6CH30T06

6.13" Stroke Williams 30T Single Acting Cylinders - 6CH30T06

Now:$2,206.34
MSRP:$4,982.69
(You save $2,776.35 )
  • SKU:JHW6CH30T06
  • UPC:662459923028
  • Condition:New
  • Scale:30 Ton
2 In Stock
Product Description

Williams

The 6CH30T06 6.13" Stroke Williams 30T Single Acting Cylinders - 6CH30T06 comes with the Williams Industrial Brands Limited lifetime warranty.

6.13

30T Hollow Hole Cylinder 6.13" Stroke

Features

  • 6 standard models
  • Ideal for some pulling and pushing applications
  • Heavy duty compression spring
  • Dual wipers help prevent contamination
  • Collar thread protector
  • High flow coupler with dust cap
  • Country of Origin : Taiwan
  • Cylinder Capacity (tons) : 30
  • Stroke (in) : 6.11
  • Cylinder Effective Area (in2) : 6.32
  • Pressure at Capacity (psi) : 9,488
  • Oil Capacity (in3) : 38.67
  • Min. Height A (in) : 13.02
  • Max. Height B (in) : 19.13
  • O.D. D (in) : 4.50
  • Plunger I.D. C (in) : 1.311
  • Plunger O.D. E (in) : 2.48
  • Plunger Internal Thread J (in) : 1 13/16"-16UN
  • Internal Thread Length K (in) : 0.87


  • DIMENSION
    Collar Thread Dia. H (in) Collar Thread Lgth. L (in) Base to Inlet Port G (in) Base Mounting Hole Bolt Circle X (in) Base Mounting Hole Thread Y (in) Base Mounting Hole Thread Depth Z (in) Weights (lbs)
    4 1/2 -12 1.75 0.81 3/8"-16UNC 0.55 43.0
