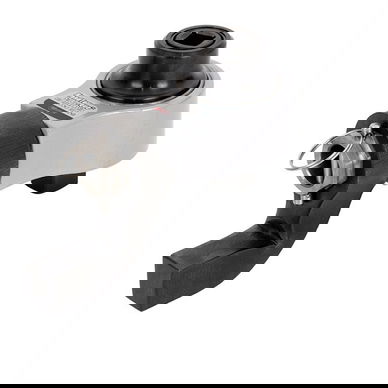

3/4" Dr 74 - 738 Ft Lbs Norbar HT3 Torque Multiplier - 180260

3/4" Dr 74 - 738 Ft Lbs / 100 - 1000 Nm Norbar 5:1 Ratio HT3 Torque Multiplier - 180260

The HandTorque­ HT3-1000 has been designed for use where it is necessary to provide higher torques than would otherwise be possible due to limitations of space or operator strength. Input to the multiplier is via a ratchet torque wrench set to one fifth of the desired output torque.

Features

• Quick change cranked reaction with improved flexibility allowing reaction in 8 orientations
• Robust construction of this Norbar HT3 torque multiplier means minimal maintenance and long life
• Small and compact design

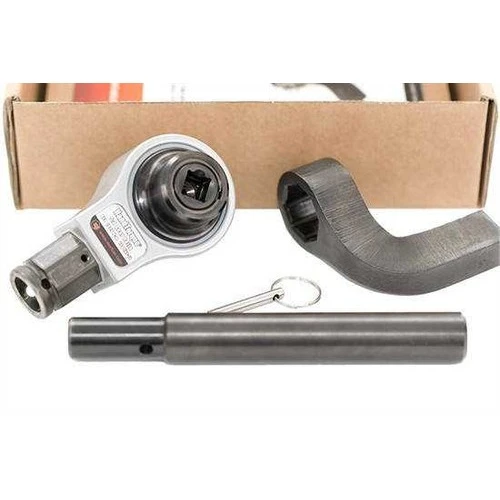

• Supplied with 2 reaction bar styles for maximum versatility
• Tool Weight: 3.3 Lbs

• Output Square: 3/4"
• Input Square: 1/2"
• Reaction Plate Weight: 0.5 Kg cranked / 0.69 Kg straight
• 5:1 nominal torque multiplication reaction dependent. Ratio with cranked foot is 4.8:1; with straight reaction being 4.9:1
• Packed Weight* 3.3 Lbs

• Packed Width* (W) 15.75"
• Packed Height* (H) 4.33"
• Packed Depth* (D) 12.6"
• Accuracy: ±4%
• Operates between: 100.00 - 1000.00 N·m, 74.00 - 738.00 lbf·ft

Made In UK
