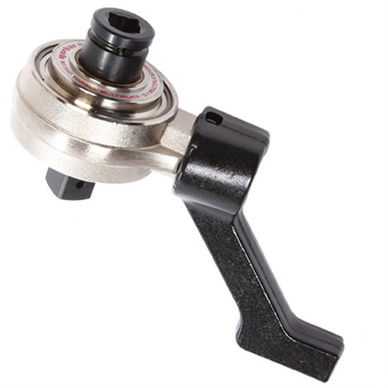

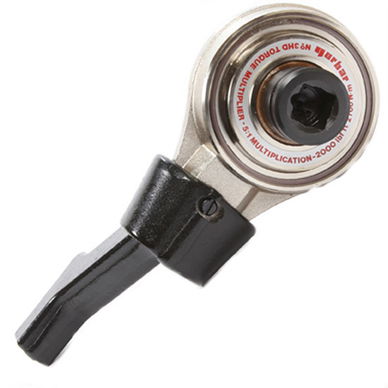

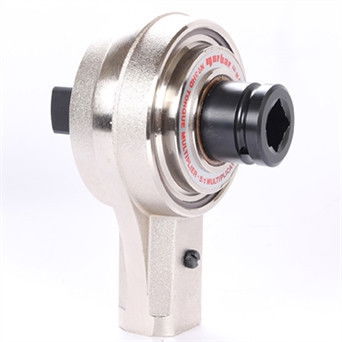

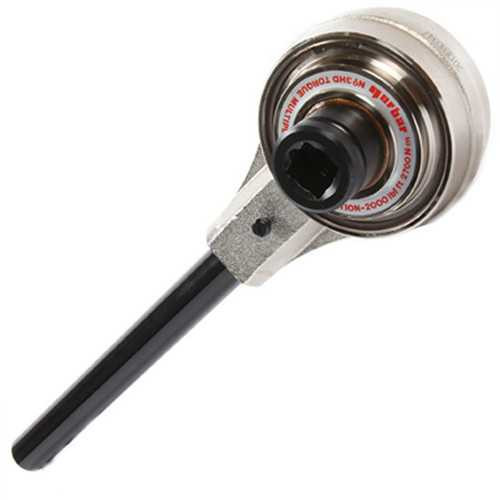

2,000 Ft Lbs 1" Dr Norbar 5:1 Highwayman Torque Multiplier HT3 - 17221
Now:$960.72
MSRP:$1,055.74
(You save $95.02 )
- SKU:17221
- UPC:5060207560115
- Condition:New
- Drive Size:1 Inch
- Max Ft Lbs:2000
- Max Nm:2711
- Torque Ratio:5:1
- Weight Lbs:8.37
Product Description
The Norbar HT3 Kit 17221 'Highwayman' torque multiplier has a 5:1 ratio and Operates between: 200 - 2000 Ft Lbs, 270 - 2700 Nm & 27.0 - 270 kgf·m. This 5:1 torque multiplier is designed for use where it is necessary to provide higher torques than would otherwise be possible due to limitations of space or operator strength.
Input to the multiplier is via a ratchet torque wrench set to one fifth of the desired output torque.
FEATURES
- 5:1 torque multiplication, accuracy guaranteed better than +/-4%.
- Supplied with two reaction bar styles for maximum versatility.
- Robust construction of the Norbar 17221 5:1 torque multiplier means minimal maintenance and long life.
- Supplied in a carrying case, the Highwayman is ideal for inclusion in the heavy vehicle kit.
- Tool Weight: 3.8 Kg
- Multiplication Ratio: 5:1
- Output Square: 1"
- Input Square: 3/4"
- Velocity Ratio: 5.333:1
- Plate Weight: 1.3 Kg
Also, check out our Norbar Highwayman Torque Multiplier, which features a 5:1 torque multiplication ratio for enhanced efficiency.
Made In England
