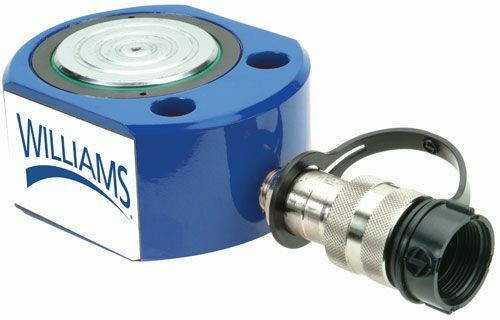

30 Ton 3/8'' Williams Flat Body Cylinders - 6CF30T05

The 6CF30T05 3/8'' Williams 30T Flat Body Cylinders - 6CF30T05 comes with the Williams Industrial Brands Limited lifetime warranty.

30T Flat Body Cylinder

Features

• Made of high quality steel
• Extremely low collapsed height for applications with minimal clearance at the lift point
• Great for areas of low clearance
• Maximum working pressure: 10,000 psi / 700 bar
• Country of Origin : Taiwan
• Cylinder Capacity (tons) : 30
• Stroke (in) : 0.51
• Cylinder Effective Area (in2) : 6.49
• Pressure at Capacity (psi) : 9,240
• Oil Capacity (in3) : 3.31
• Collapsed Height A (in) : 2.31
• Extended Height B (in) : 2.82
• Outside Dim. D1 x D2 (in) : 4.6 x 3.8
• Cylinder Bore Dia. C (in) : 2.87
• Plunger Dia. E (in) : 2.50
• Base to Port G (in) : 0.79
• Plunger to Base L (in) : 1.88
• Plunger to Mtg. Hole M (in) : 1.75

DIMENSIONS
Hole Pitch X (in)	Hole Dia Y (in)	Counter Bore Dia. (in)	Counter Bore Depth (in)
2.06	0.4	0.62	0.44
