- SKU:JHW6CF05T03
- UPC:662459923042
- Condition:New
- Scale:5 Ton
Product Description

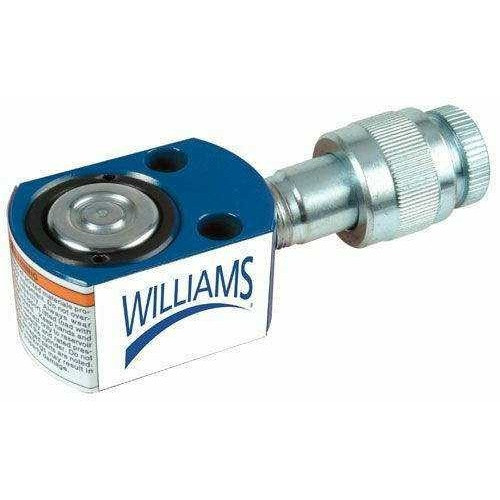

The 6CF05T03 3/8'' Williams 5T Flat Body Cylinders - 6CF05T03 comes with the Williams Industrial Brands Limited lifetime warranty.
5T Flat Body Cylinder
Features
- Made of high quality steel
- Extremely low collapsed height for applications with minimal clearance at the lift point
- Great for areas of low clearance
- Maximum working pressure: 10,000 psi / 700 bar
- Country of Origin : Taiwan
- Cylinder Capacity (tons) : 5
- Stroke (in) : 0.24
- Cylinder Effective Area (in2) : 1.10
- Pressure at Capacity (psi) : 9,090
- Oil Capacity (in3) : 0.26
- Collapsed Height A (in) : 1.26
- Extended Height B (in) : 1.5
- Outside Dim. D1 x D2 (in) : 2.4 x 1.6
- Cylinder Bore Dia. C (in) : 1.18
- Plunger Dia. E (in) : 0.98
- Base to Port G (in) : 0.69
- Plunger to Base L (in) : 0.80
- Plunger to Mtg. Hole M (in) : 0.87
| DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hole Pitch X (in) | Hole Dia Y (in) | Counter Bore Dia. (in) | Counter Bore Depth (in) | ||||||||
| 1.12 | 0.2 | 0.31 | 0.17 | ||||||||
