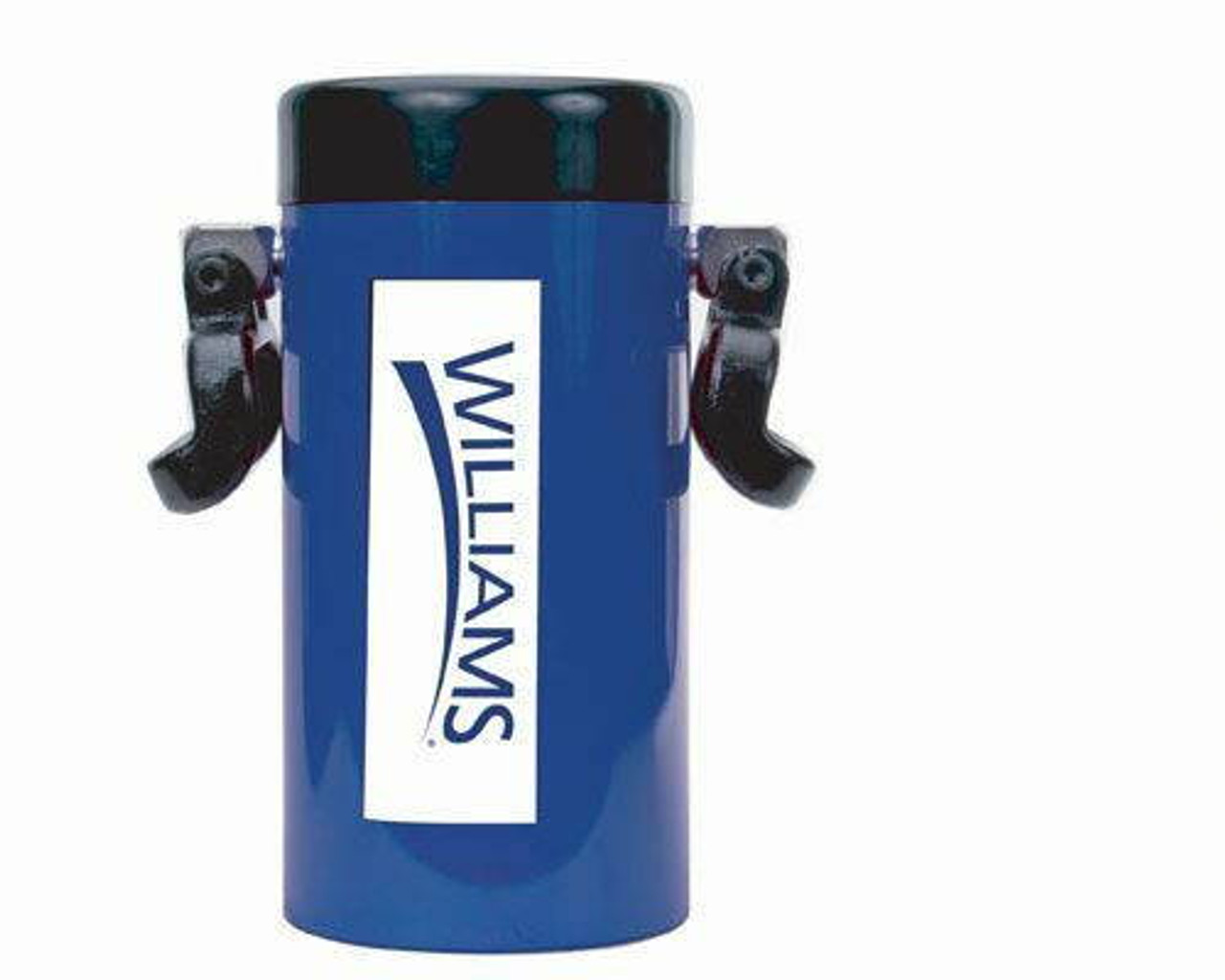

6.61" Stroke Williams 100T Single Acting Cylinders - 6C100T06

The 6C100T06 6.61" Stroke Williams 100T Single Acting Cylinders - 6C100T06 comes with the Williams Industrial Brands Limited lifetime warranty.

100T S/A 6''

Features

• 39 models
• Internal plunger threads
• Snap in grooved saddles
• Rod wiper seals out dirt and contamination
• Collar fi xture threads
• Two base mounting holes on most models
• High strength steel construction from gun drilled solid bar
• High fl ow 3/8" NPTF couplers
• Collar thread protector
• One piece high grade alloy bearing for side load protection and long life
• Polyurethane cup seal provides optimum performance
• Industrial hard chrome plated ram helps prevent rust and corrosion
• Solid steel cylinder body
• Heavy duty return spring provides quicker retraction
• Ideal for lifting and pressing
• Maximum working pressure: 10,000 psi / 700 bar
• Country of Origin : Taiwan
• Cylinder Capacity (tons) : 100
• Stroke (in) : 6.61
• Cylinder Effective Area (in2) : 20.57
• Pressure at Capacity (psi) : 9,720
• Oil Capacity (in3) : 135.97
• Collapsed Height A (in) : 14.06
• Extended Height B (in) : 20.67
• Cylinder Bore Dia. C (in) : 5.12
• Outside Dia. D (in) : 6.97
• Plunger Dia. E (in) : 4.13
• Saddle Dia. F (in) : 2.76
• Base to Inlet Port G (in) : 1.57
• Collar Thread H (in) : 6 7/8 - 12
• Collar Thread Length L (in) : 1.73
• Plunger Internal Thread J (in) : N/A
• Plunger Thread Length K(in) : N/A
• Base Mounting Hole Bolt Circle X (in) : 5.50
• Base Mounting Hole Thread Y (in) : 3/4"-10UNC
• Base Mounting Hole Thread Depth Z (in) : 1
