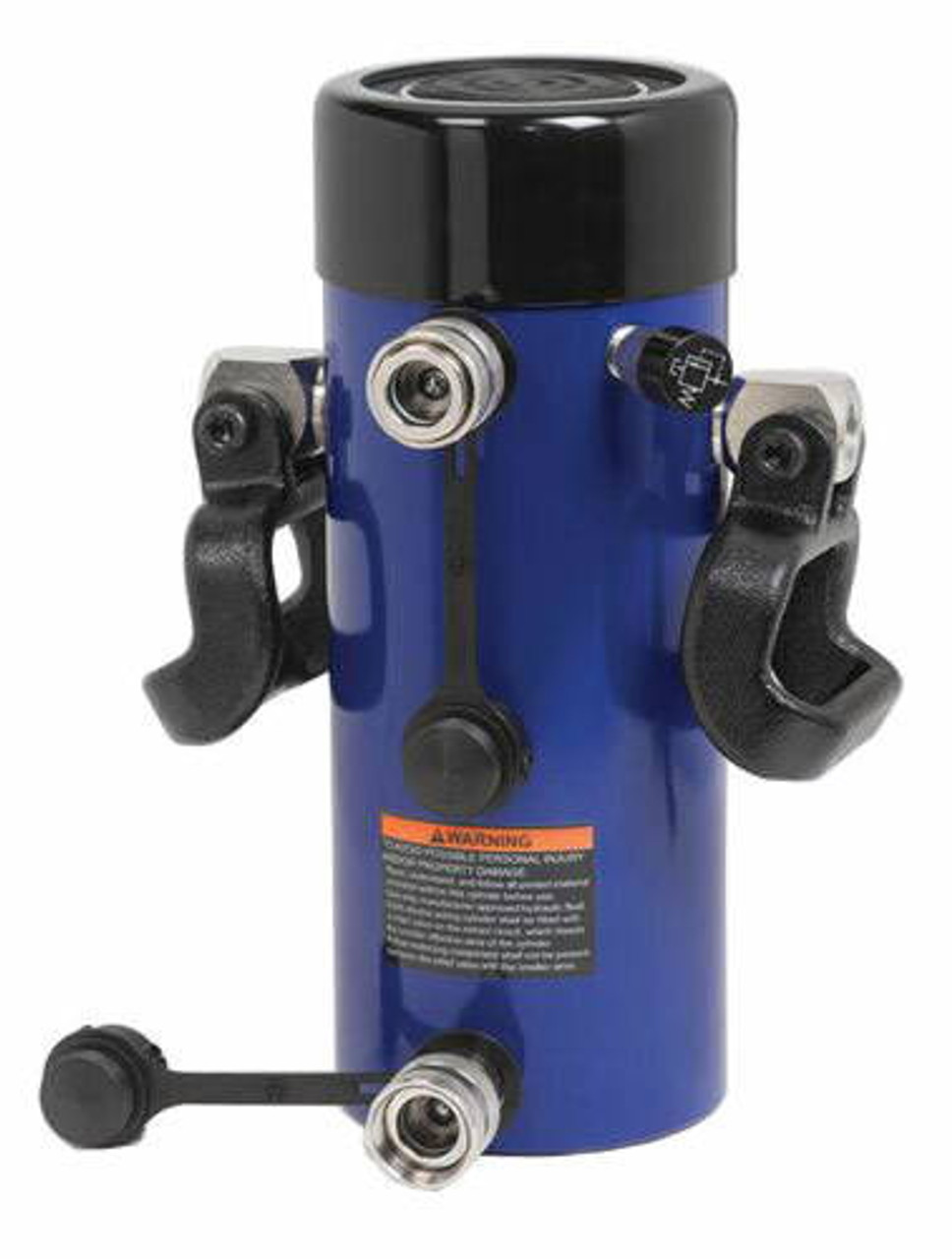

8.15" Stroke Williams 30T Double-Act Cylinder - 6CD30T08
Now:$1,700.40
MSRP:$3,840.10
(You save $2,139.70 )
- SKU:JHW6CD30T08
- UPC:662459946058
- Condition:New
- Scale:30 Ton
Shipped by date ordered. Order now for earliest delivery when this item is back in stock.
Product Description
The 6CD30T08 8.15" Stroke Williams 30T Double-Act Cylinder - 6CD30T08 comes with the Williams Industrial Brands Limited lifetime warranty.
30T Double Action Cylinder 8" Str
Features
- Rod wiper seals out dirt and contamination
- High strength steel construction from gun drilled solid bar
- High fl ow 3/8" NPTF couplers
- One piece high grade alloy bearing for side load protection and long life
- Ideal for pushing and pulling
- Maximum working pressure: 10,000 psi / 700 bar
- Country of Origin : Taiwan
- Cylinder Capacity (tons) : 30
- Stroke (in) : 8.15
- Maximum Cylinder Capacity Push (ton) : 32.9
- Maximum Cylinder Capacity Pull (ton) : 16.2
- Cylinder Effective Area Push (in2) : 6.49
- Cylinder Effective Area Pull (in2) : 0.74
- Oil Capacity Push (in3) : 52.93
- Oil Capacity Pull (in) : 26.02
- Collapsed Height A (in) : 15.31
- Extended Height B (in) : 23.46
- Cylinder Bore Dia. C (in) : 2.87
- Outside Dia. D (in) : 3.98
| DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. E (in) | Saddle Dia. F (in) | Base to Adv. Port G (in) | Top to Return Port H (in) | Plunger Internal Thread J (in) | Plunger Thread Length K (in) | Collar Thread L (in) | Collar Thread Length M (in) | Base Mounting Hole Bolt Circle X (in) | Base Mounting Hole Thread Y (in) | Base Mounting Hole Thread Depth Z (in) | Weight (lbs) |
| 2.13 | 1.97 | 1.65 | 2.91 | 1 1/2 - 16 | 0.98 | 3 5/16 - 12 | 1.93 | N/A | N/A | N/A | 43.0 |
