1/4" Dr  4 - 17 In LBS Tohnichi Digital Torque Screwdriver - STC200CN2-G
1/4" Dr  4 - 17 In LBS Tohnichi Digital Torque Screwdriver - STC200CN2-G

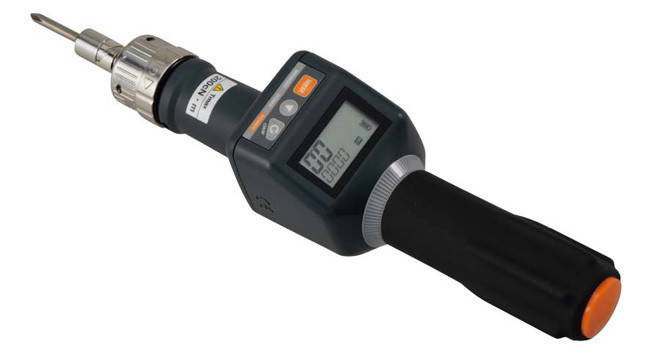

1/4" Dr 4 - 17 In LBS Tohnichi Digital Torque Screwdriver - STC200CN2-G

Now:$1,267.60
MSRP:$1,389.15
(You save $121.55 )
  • SKU:STC200CN2-G
  • Condition:New
  • Drive Size:1/4 Inch
  • Range In Lbs:4 - 17
  • Range cNm:40 - 200
  • Length:9.1"
  • Weight:0.34 Kg
  • Accuracy:3%
  • Made In:Japan
Product Description


The Tohnichi STC200CN2-G Digital Torque Screwdriver has a 1/4" Hex Bit Holder and an English range of 4-17 In Lbs and a Metric Range of 40-200 cNm or 4-20 kgf.cm. We also offer a 1/4" digital torque screwdriver with a range of 1-4.4 In Lbs.

1/4" Tohnichi Torque Screwdriver Features:

  • Ideal for measuring or tightening torque applications in cNm, kgf.cm, In Lbs or In Oz.
  • The digital torque screwdriver is portable and convenient method to confirm torque settings of torque screwdrivers.
  • Display setting can be changed so you can read it from different view points


New Judgment Feature: Light indicator and buzzer alerts:

    • In Tightening Mode, the digital torque screwdriver has light indicator (and buzzers) that alerts user to status:
      • White: approaching target torque at 80%,
      • Blue: achieved target torque
      • Yellow / Red: over torque
    • In Measuring Mode, inspection results are indicated :
      • Blue: within hi/lo judgment parameters
      • Yellow
      • Red: outside hi/lo judgment parameters


  • New Lithium-ion Battery for up to 30 Hrs Continuous Use
  • New Expanded Memory Capacity: 1000 Data Memory Storage
  • New USB port for easy data downloading
  • Features Ratcheting Direction Control
  • Accepts standard 1/4 hex root shape bits (sold separately See "Bit Selection" link below)
  • New: STC2-G-BT Version Features Bluetooth Data Transfer Function
  • Data Memory: 1000 Data
  • Arithmetic Function: Sampling, Maximum, Minimum, Means
  • Measurement Mode: PEAK/RUN
  • Usage Direction: CW & CCW
  • Usage Type: Measuring & Tightening
  • Data Output: USB
  • Reset Function: Manual/Auto 0.5 - 5.0 sec. adjustable by 0.5 step.
  • Other Function: Auto power off (after 3 min.), Battery Life Indicator, Auto Zero
  • Power Source: Lithium-ion Battery Pack BP-7
  • Charging Time: Via Charger: 5 Hrs, Via PC (USB): 10 Hrs
  • Continuous Use: Approx 30 Hrs.
  • Operating Conditions [°C]: Temperature 0 ~ 40 Degrees C, no condensation
  • Standard Accessories: Quick Charger BA-7, Lithium-ion Battery Pack BP-7, USB Cable
  • Use this Tohnichi torque screwdriver to spot check torque drivers


Standard Model Bluetooth Model STC2-G (Unit Selection via Keypad) Approx. Weight
cNm kgf.cm. lbf.in   Kg
Min~Max 1 Digit Min~Max 1 Digit Min~Max 1 Digit
STC200CN2-G STC200CN2-G-BT 40-200 0.2 4-20 0.02 4-17 0.02     0.34

Note:

  • Accepts standard, 6.35 (1/4) HEX bit. (sold separately)

STC200CN2

  Made In Japan
