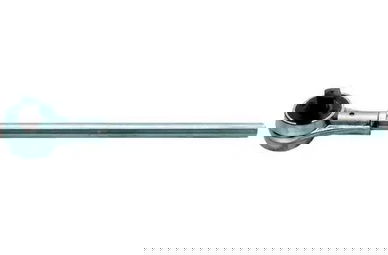

4,000 Ft Lbs 1 1/2" Dr Williams 3.9:1 Torque Multiplier - TM-1500

The Williams TM-1500 Torque Multiplier Tool with Handle offers a torque ratio of 3.9:1 and a maximum output of 4,000 Ft Lbs or 5,423 Nm.

3.9 to 1 Torque Multiplier Features:

• The Williams TM-1500 Torque Multiplier provides the operator with nut-turning power that requires only a fraction of the force required when using conventional tools.
• Input and output rotation is in the same direction.
• Reaction bar rotation is opposite to input direction and must rest securely against a rigid object to withstand the generated reaction force.
• By removing 4 screws, heads may be easily disassembled for inspection, cleaning and lubrication.
• Max Output Ft. Lbs.: 4000
• Multiplication Ratio: 3.9 to 1
• Approx Ft Lbs for Max Output: 1150
• Input Female Sq.: 1
• Output Male Sq.: 1 1/2"
• Head Thickness Inc. Tang: 6 1/8
• Head Dia.: 5 3/16
• Oal. Lgth. Inc. Reaction Bar: 28.875
