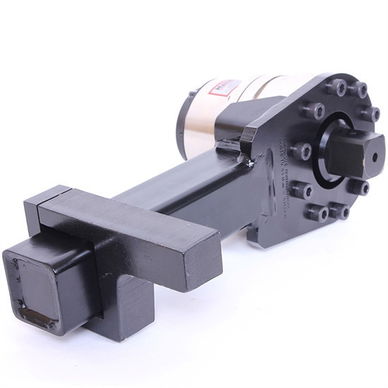

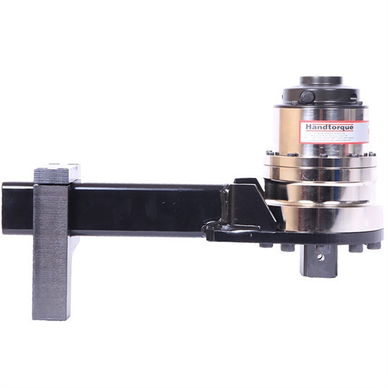

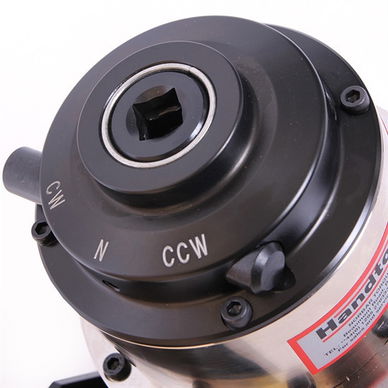

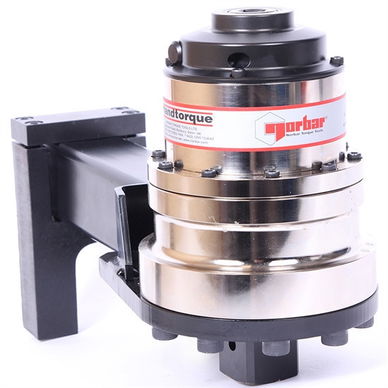

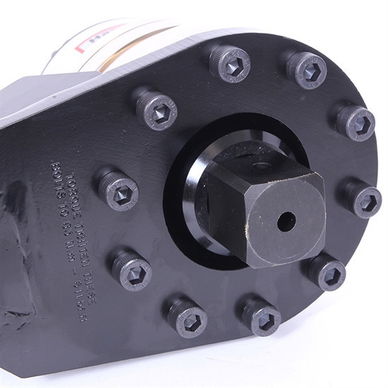

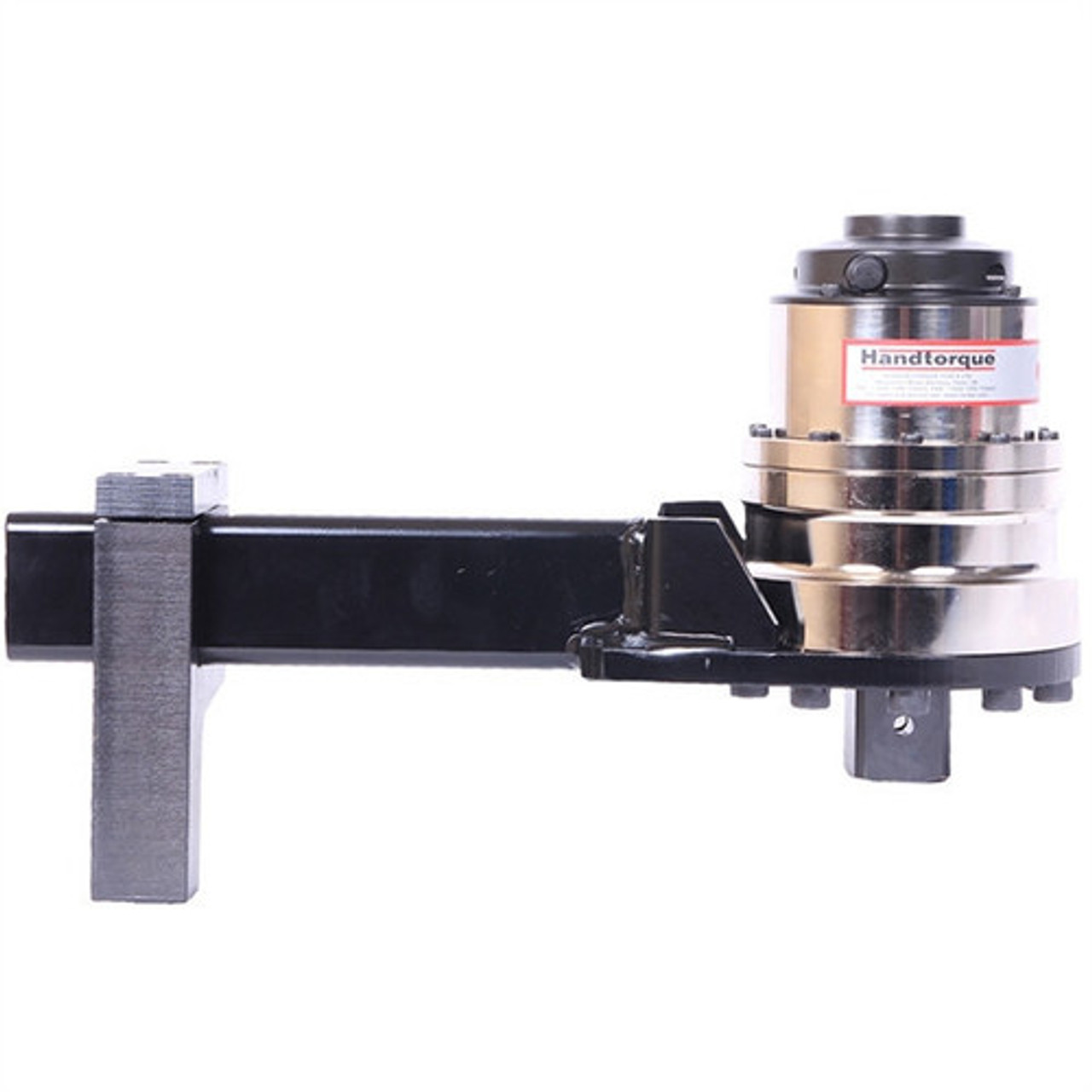

4,500 Ft Lbs 1 1/2" Dr Norbar 125:1 Torque Multiplier HT7/125 AWUR - 16068

$4,337.56
$5,899.56
  • SKU:16068
  • UPC:5060207567756
  • Condition:New
  • Drive Size:1 1/2 Inch
  • Max Ft Lbs:4500
  • Max Nm:6000
  • Torque Ratio:125:1
  • Weight Lbs:12.2
Product Description


The Norbar 16068 torque multiplier ratchet HT7/125 AWUR uses multiple stages of gearing to give a torque ratio of 125:1. This multiplier delivers an English torque level of 4,500 Ft Lbs or 6,000 Nm and contains a Anti Wind-Up Ratchet system.

FEATURES

  • Electronic torque transducers can be fitted for precise torque monitoring.
  • True torque multiplication guaranteed better than +/-4%.
  • High ratios allow the use of a small torque wrench, multipliers can be used where access is limited.
  • Anti Wind-Up Ratchet available on all models allowing safer and more practical operation.
  • Tool Weight: 12.2 Kg
  • Multiplication Ratio: 125:1
  • Output Square: 1 1/2"
  • Input Square: 1/2"
  • Velocity Ratio: 158.678:1
  • Max Input Speed: 292 revs/min
  • Plate Weight: 6.3 Kg
  • Plate Torque: 75 N.m




Made In England
