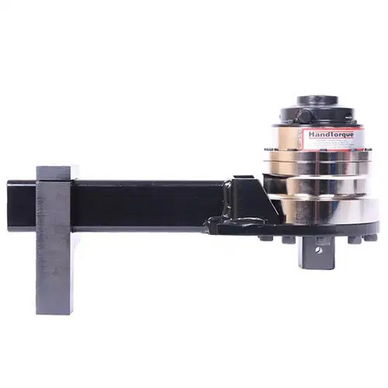

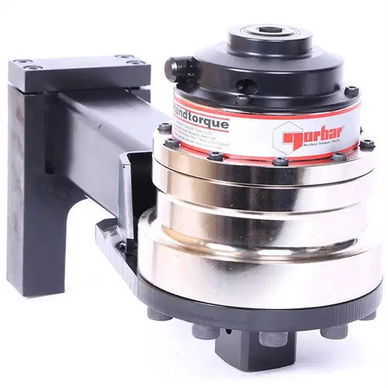

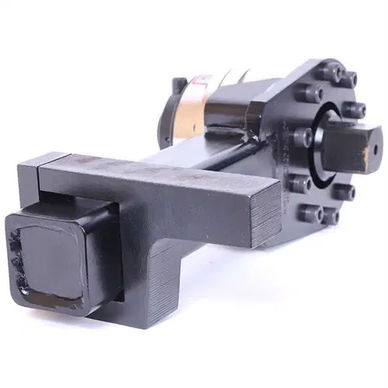

Norbar 4,500 Ft Lbs Torque Multiplier HT7/25 AWUR 16065

4,500 Ft Lbs 1 1/2" Dr Norbar 25:1 Torque Multiplier HT7/25 AWUR - 16065

$3,919.89 $4,471.66
(You save $551.77)
Model #
16065
Condition:
New
Drive Size:
1 1/2"
English Range:
4,500 Ft Lbs
Metric Range:
6,101 Nm
Torque Ratio:
25:1
Search Torque Ratios:
20:1 +
Weight Lbs:
10.7
Scale:
Ft Lbs up to 4,500

Description


The Norbar 16065 torque multiplier HT7/25 AWUR uses multiple stages of gearing to give an torque ratio of 25:1.  This multiplier delivers an English torque level of 4,500 Ft Lbs or 6,000Nm and contains a Anti Wind-Up Ratchet system.



4500 Ft Lb Hand Torque Multiplier Features:

  • Electronic torque transducers can be fitted for precise torque monitoring.
  • True torque multiplication guaranteed better than +/-4%.
  • High ratios allow the use of a small torque wrench, multipliers can be used where access is limited.

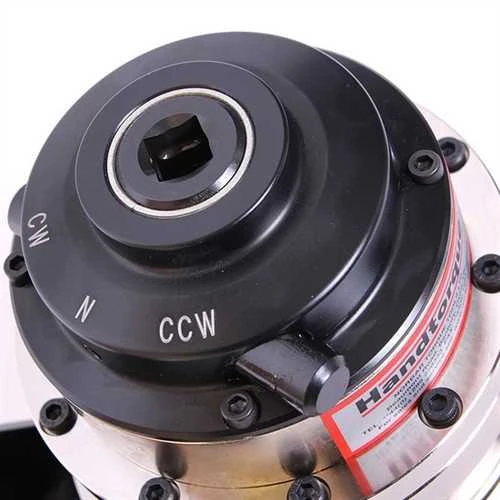

  • Anti Wind-Up Ratchet available on all models allowing safer and more practical operation.
  • Tool Weight: 10.7 Kg
  • Multiplication Ratio: 25:1
  • Output Square: 1 1/2"
  • Input Square: 1/2"
  • Velocity Ratio: 158.678:1
  • Max Input Speed: 292 revs/min
  • Plate Weight: 6.3 Kg
  • Plate Torque: 75 N.m




Made In England



Warranty Information

NORBAR Products Warranty: 7.1 The Company warrants that, subject to the other provisions of these Conditions upon delivery, and for a period of 12 months after the date of delivery, the Goods will: a) be of satisfactory quality within the meaning of the Sale of Goods Act 1979; and b) comply in all material respects with the specification for them as set out in the Company’s catalogue or other published specification current at the time that the order for the Goods was accepted by the Company. 7.2 The Company will not be liable for a breach of any of the warranties in condition 7.1 unless: a) the Buyer gives written notice of the defect to the Company within 14 days of the time when the Buyer discovers or ought to have discovered the defect; and b) the Buyer returns the defective Goods properly packed, carriage paid to the Company’s premises at the address given in condition 1.1. 7.3 The Company will not be liable for a breach of the warranties in condition 7.1 if: a) the Buyer makes any further use of the Goods after giving such notice; or b) the Goods have been misused, mishandled, overloaded, amended, modified or repaired in any way by the Buyer or its customers, or used for any purpose other than that for which they were designed; or c) the defect is due to fair wear and tear or arises because the Buyer or its customer failed to follow the Company’s oral or written instructions as to the storage, installation, commissioning, use or maintenance of the Goods or (if there are none) good trade practice. 7.4 Subject to conditions 7.2 and 7.3, if any of the Goods do not conform with any of the warranties in condition 7.1, the Company will at its option repair or replace such Goods (or the defective part of them) or refund the price of such Goods at the pro rata Contract rate. 7.5 If the Company complies with condition 7.4, it will have no further liability for a breach of any of the warranties in clause 7.1 in respect of such Goods. 7.6 Except as provided in condition 7.1, the Company makes no representation or warranty, whether express or implied, as to the quality or fitness for purpose of the Goods and all warranties, conditions and other terms which may be implied by statute or common law are, to the fullest extent permitted by law, excluded from the Contract. 7.7 Nothing in this Contract excludes or limits the liability of the Company for: a) death or personal injury caused by the Company’s negligence; or b) under section 2(3) of the Consumer Protection Act 1987; or c) for fraud or fraudulent misrepresentation; or d) for any matter which it would be illegal for the Company to exclude or attempt to exclude its liability.
