Norbar 2,500 Ft Lbs Torque Multiplier HT6/25 AWUR 16092

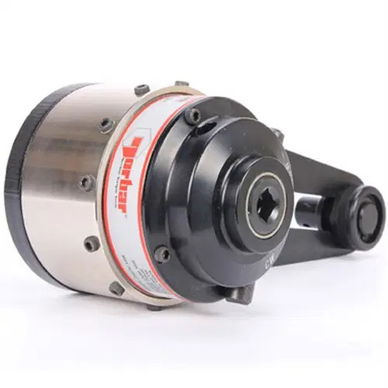

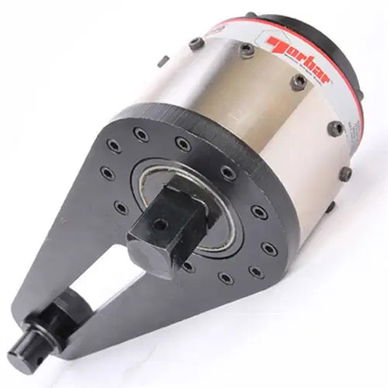

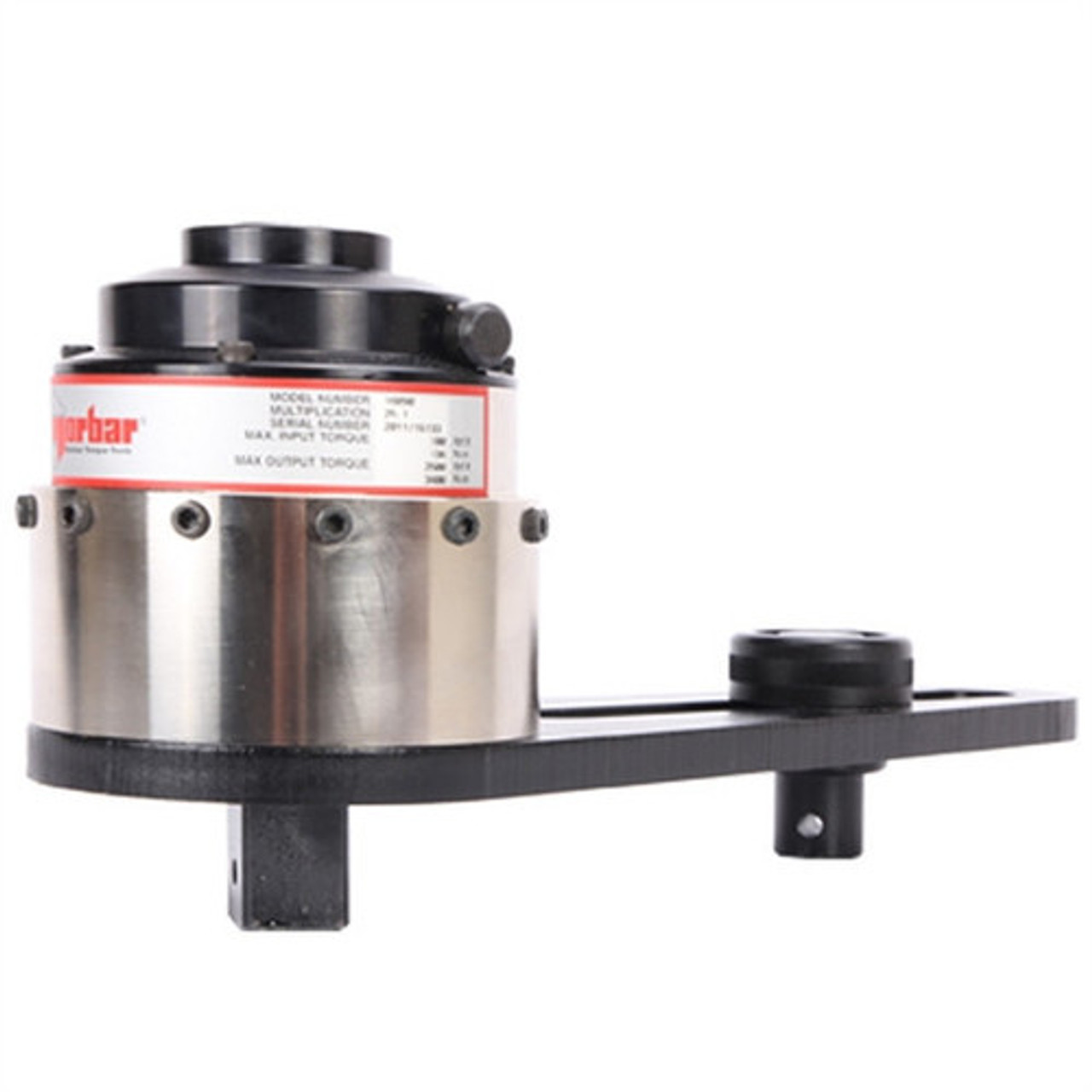

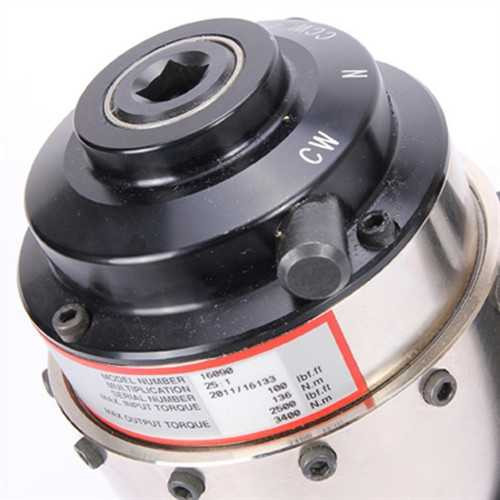

2,500 Ft Lbs 1 1/2" Dr Norbar 25:1 Torque Multiplier HT6/25 AWUR - 16092

$3,620.59 $4,130.22
(You save $509.63)
Model #
16092
Condition:
New
Drive Size:
1 1/2"
English Range:
2,500 Ft Lbs
Metric Range:
3,389 Nm
Torque Ratio:
25:1
Search Torque Ratios:
20:1 +
Weight Lbs:
16.5
Scale:
Ft Lbs up to 2,600

Description


The Norbar 16092 HT6/25 AWUR employs multiple stages of epicyclic gearing. This 25:1 torque multiplier delivers an English level of 2,500 Ft Lbs or 3,400Nm and contains a Anti Wind-Up Ratchet system. Check out this 2500 ft lb torque multiplier tool for an option with a slightly smaller output square.

FEATURES

  • Electronic torque transducers can be fitted for precise torque monitoring.
  • True torque multiplication guaranteed better than +/-4%.
  • High ratios allow the use of a small torque wrench, multipliers can be used where access is limited.
  • Anti Wind-Up Ratchet available on all models allowing safer and more practical operation.
  • Tool Weight: 7.5 Kg
  • Multiplication Ratio: 25:1
  • Output Square: 1 1/2"
  • Input Square: 1/2"
  • Velocity Ratio: 29.752:1
  • Max Input Speed: 105 revs/min
  • Plate Weight: 2.5 Kg
  • Plate Torque: 19 N.m




Made In England
