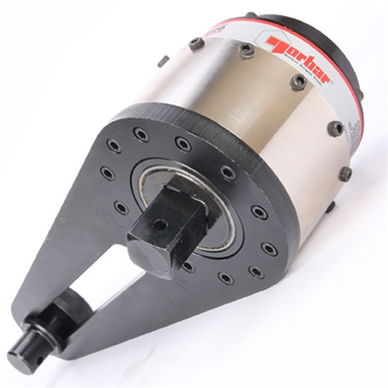

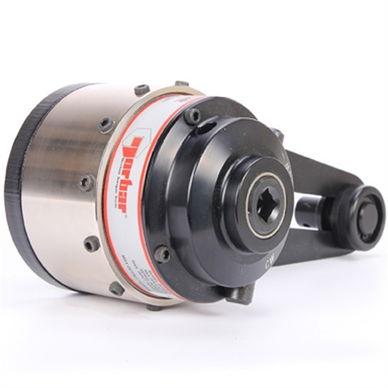

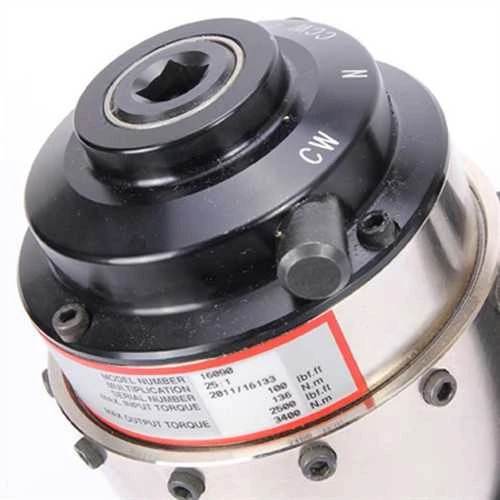

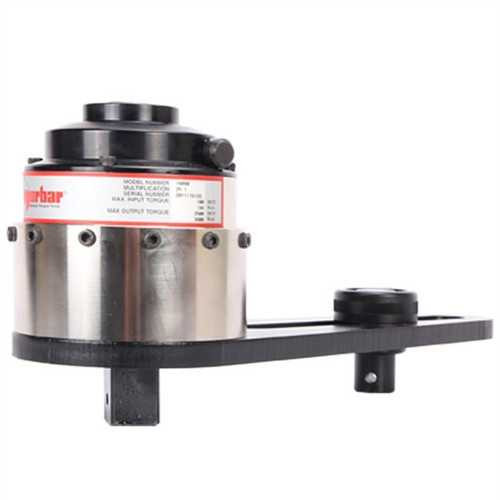

2,500 Ft Lbs 1" Dr Norbar 25:1 Torque Multiplier HT5/25 AWUR - 16090

$3,837.38
$4,427.76
  • SKU:16090
  • UPC:5060207567671
  • Condition:New
  • Drive Size:1 Inch
  • Max Ft Lbs:2500
  • Max Nm:3389
  • Torque Ratio:25:1
  • Weight Lbs:16.5
Product Description


The Norbar HT5/25 AWUR 16090 torque multiplier employs multiple stages of epicyclic gearing to give an torque ratio of 25:1. This Norbar torque multiplier delivers an English torque level of 2,500 Ft Lbs or 3,400Nm and contains a Anti Wind-Up Ratchet system.



FEATURES

  • Electronic torque transducers can be fitted for precise torque monitoring.
  • True torque multiplication guaranteed better than +/-4%.
  • High ratios allow the use of a small torque wrench, multipliers can be used where access is limited.
  • Anti Wind-Up Ratchet available on all models allowing safer and more practical operation.
  • Tool Weight: 7.5 Kg
  • Multiplication Ratio: 25:1
  • Output Square: 1"
  • Input Square: 1/2"
  • Velocity Ratio: 29.752:1
  • Max Input Speed: 105 revs/min
  • Plate Weight: 2.5 Kg
  • Plate Torque: 19 N.m




Made In England
