Norbar Smart Flange Mounted Transducer 1/2" & 3/4" Dr 12.5 - 250 Ft Lbs - 50681.LOG
Norbar Smart Flange Mounted Transducer 1/2" & 3/4" Dr 12.5 - 250 Ft Lbs - 50681.LOG
Norbar Smart Flange Mounted Transducer 1/2" & 3/4" Dr 12.5 - 250 Ft Lbs - 50681.LOG
Norbar Smart Flange Mounted Transducer 1/2" & 3/4" Dr 12.5 - 250 Ft Lbs - 50681.LOG

Norbar Smart Flange Mounted Transducer 1/2" & 3/4" Dr 12.5 - 250 Ft Lbs - 50681.LOG

Now:$2,626.73
MSRP:$2,779.60
(You save $152.87 )
  • SKU:50681.LOG
  • UPC:5060922233097
  • Condition:New
  • Scale:Ft Lbs
  • Type:Mounted
  • Drive Size:3/4 Inch
  • Drive Size:1/2 Inch
Product Description

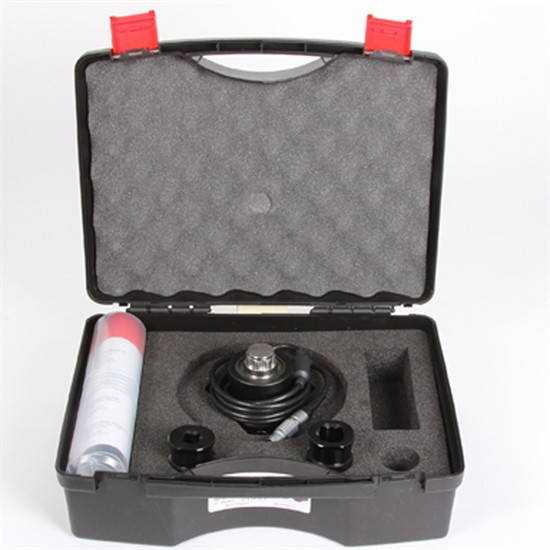

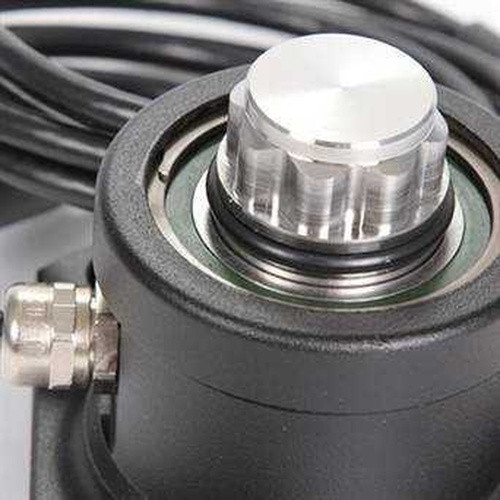

The Norbar 50681.LOG Smart Flange Mounted Transducer has a 1/2" or 3/4" Drive and can measure in an English range of 12.5 - 250 Ft Lbs.  Norbar Flange Mounted Transducers incorporate mounting points for securely fixing the transducer to the working surface. The transducer lead is also included and is fitted with a high quality Lemo® connector, suitable for attachment to TST, TTT and Pro-Log instruments.

FEATURES

  • Accuracy: Class 1 for the primary classification range (+/-0.5% of reading).
  • 'SMART' - TST, TTT, TTL-HE and T-Box instruments will automatically recognizes calibration details.
  • Rundown Fixture is included allowing joint simulation for power tool testing.
  • Supplied with NIST calibration certificate.
  • Transducer has a 22mm Male Bi-Square drive and is supplied with precision made square drive adapters.
  • If using this transducer with a Series 1 TST or TTT (Part No.s 43198 - 43201) or a Pro-Log display instrument, please contact Norbar.
  • Weight: 2.79 Kg
  • Temp Range Operating: -10°C to +50°C
  • Temp Range Storage: -20°C to +70°C
  • Thermal Effect On Span: < +/- 0.03%/°C
  • Thermal Effect On Zero: < +/- 0.01%/°C
  • Torsional Deflection: < 1°
  • Fatigue: > 10 exp 7 cycles
  • Maximum Torsion Capacity: 150%
  • Connector: Lemo®
  • Drive 1: 1/2"
  • Drive 2: 3/4"

Made in England
