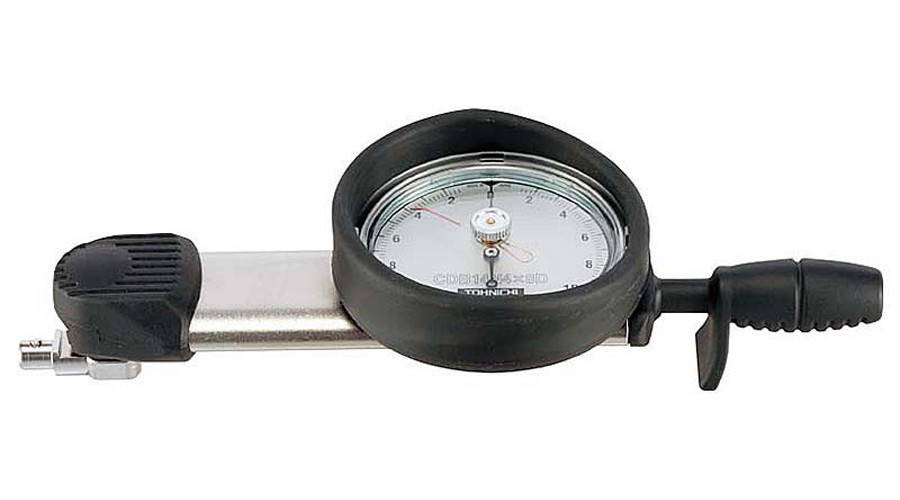

Tohnichi 20 - 120 In Lbs Interchangeable Head Dial Torque Wrench - 140CDB4-A-S

Tohnichi 20 - 120 In Lbs Interchangeable Head Dial Torque Wrench - 140CDB4-A-S

$306.85 $323.00
(You save $16.15)
Model #
140CDB4-A-S
Condition:
New
Range for this wrench:
20 - 120 In Lbs
Length:
8.6"
Accuracy:
± 3%
Type:
Dial
Scale:
In Lbs to 200

Description


The Tohnichi 140CDB4-A-S has a range of 20 - 120 In Lbs and uses Tohnichi size 8D heads.

Features

  • Accuracy ± 3%.
  • Easily exchange different head types for various applications such as ring head, open end head, and ratchet. (See full selection of available heads in accessories section below)
  • Lightweight, easy-to read large scale features follower hand memory pointer that captures peak torque
  • Since the amount of deformation is small, the operator's fatigue is reduced compared to the flat beam type torque wrench.
  • The dial is movable making it easy to adjust the zero point, or use for tightening by moving dial to desired torque and tightening to "0"
  • The dial indicator has a full-surround protective cover to prevent damage to external objects.
  • Low range models have handle designed to guide operator to use index finger to apply lighter force to avoid possible over torque

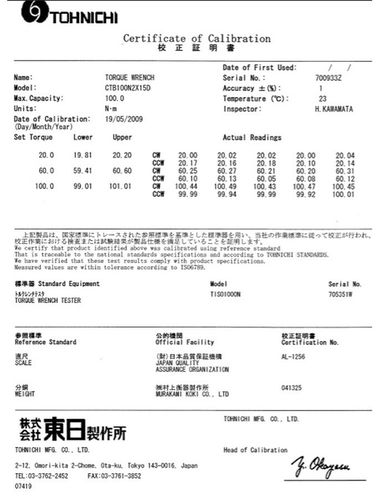

  • Includes certificate of calibration compliant with calibration procedures of ISO 6789 Type I Class B.

Specifications

Accuracy ± 3%
AMERICAN MODEL 140CDB4-A-S
TORQUE RANGE
[lbf • in/lbf • Ft]
MIN.~MAX. 20~120
GRAD. 2
APPLICABLE BOLT
(REFERENCE)
STEEL (M7)M8
HEIGHT TENSION M5,M6
MAX. HAND FORCE [N] 63.6
DIMENSION

EFFECTIVE LENGTH L 8.6"
OVERALL LENGTH L' 8.4"
HEIGHT H 2"
HEAD d3 8
WEIGHT [lbs] .8

product dimensions

Interchangeable Heads Available For This Wrench:

qh8d-70869.jpg sh32dx27-36656.jpg
rh32dx27-23098.jpg hh22dx12-60929.1489965920.190.250.jpg

Made in Japan



Warranty Information

All Tohnichi products are thoroughly checked and tested at the factory before shipment. The accuracy of each tool should be as stated for each model as a percentage of reading unless otherwise noted. Hand tool durability is based on repeated movement tests over a minimum of 100, 000 cycles by a durability testing machine. Should defects due to faulty materials and workmanship develop within one (1) year from the date of sale, it will be repaired and put in workable condition or replaced free of charge if returned to Tohnichi with proof of purchase. The warranty is not valid if the product has been misused, tampered with, or abused.
