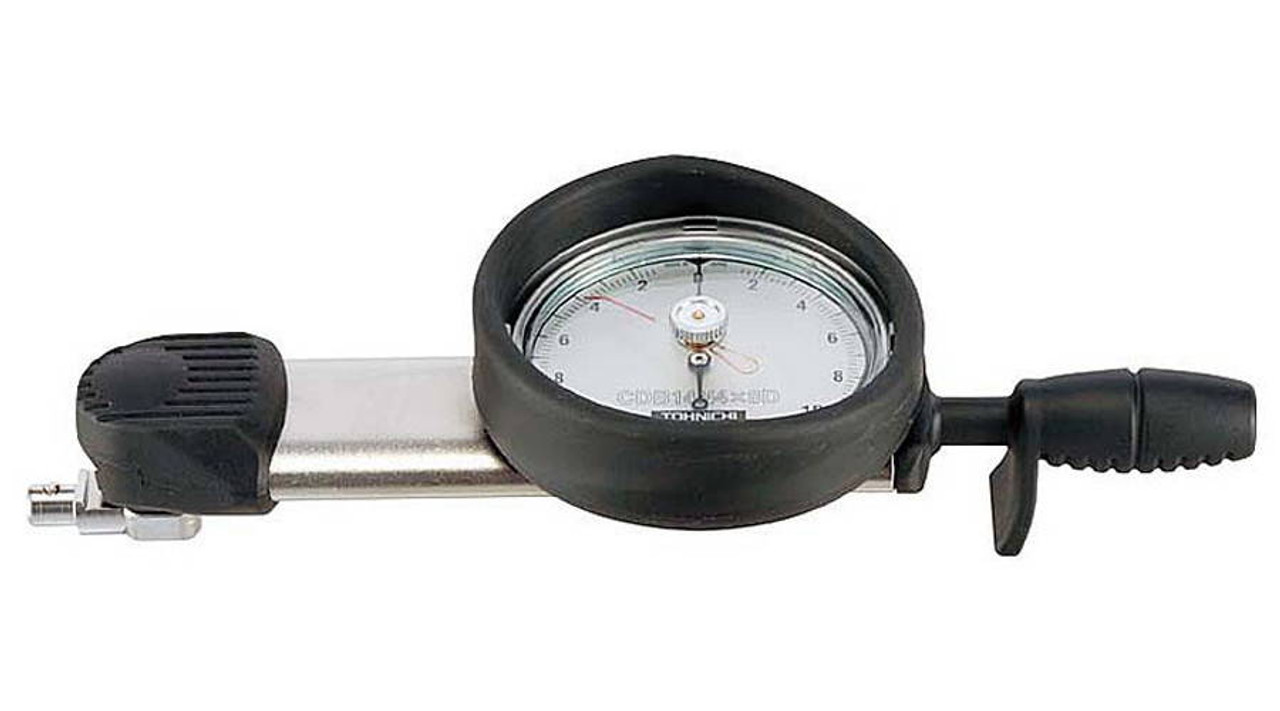

Tohnichi 6 - 60 In Lbs interchangeable Head Dial Torque Wrench - 70CDB4-A-S
Tohnichi 6 - 60 In Lbs interchangeable Head Dial Torque Wrench - 70CDB4-A-S

Tohnichi 6 - 60 In Lbs interchangeable Head Dial Torque Wrench - 70CDB4-A-S

Now:$336.76
MSRP:$372.76
(You save $36.00 )
  • SKU:70CDB4-A-S
  • Condition:New
  • Max In Lbs:60
  • Length:8.6"
  • Type:Dial
Product Description


The Tohnichi 70CDB4-A-S dial torque wrench has a range of 6 - 60 In Lbs and uses Tohnichi size 8D heads.

Features

  • Accuracy ± 3%.
  • Easily exchange different head types for various applications such as ring head, open end head, and ratchet. (See full selection of available heads in accessories section below)
  • Lightweight, easy-to read large scale features follower hand memory pointer that captures peak torque
  • Since the amount of deformation is small, the operator's fatigue is reduced compared to the flat beam type torque wrench.
  • The dial is movable making it easy to adjust the zero point, or use for tightening by moving dial to desired torque and tightening to "0"
  • The dial indicator has a full-surround protective cover to prevent damage to external objects (except CDB300N, 420N).
  • Low range models have handle designed to guide operator to use index finger to apply lighter force to avoid possible over torque

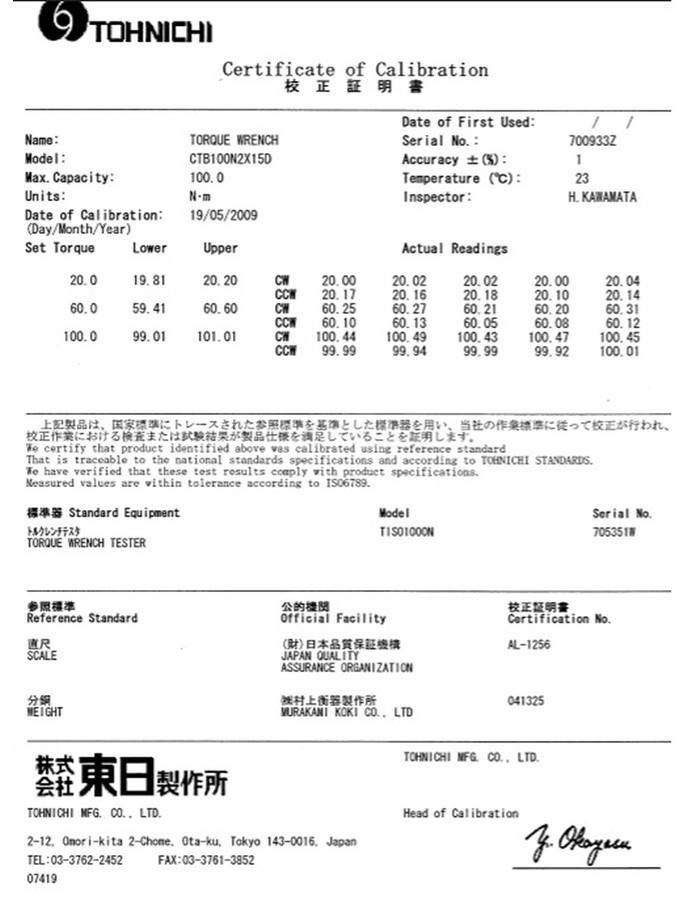

  • Includes certificate of calibration compliant with calibration procedures of ISO 6789 Type I Class B.

Specifications

Accuracy ± 3%
AMERICAN MODEL 70CDB4-A-S
TORQUE RANGE
[lbf • in/lbf • Ft]
MIN.~MAX. lbf • in 6~60
GRAD. lbf • in 1
APPLICABLE BOLT
(REFERENCE)
STEEL M5,M6
HIGHT TENSION M4(M4.5)
MAX. HAND FORCE [N] 31.8
DIMENSION

EFFECTIVE LENGTH L 8.6"
OVERALL LENGTH L' 8.4
HEIGHT H 2"
HEAD d3 8
WEIGHT [lbs] 0.8

product dimensions

interchangeable Heads Available For This Wrench:

qh8d-70869.jpg sh32dx27-36656.jpg
rh32dx27-23098.jpg hh22dx12-60929.1489965920.190.250.jpg

Made in Japan
