Product Description

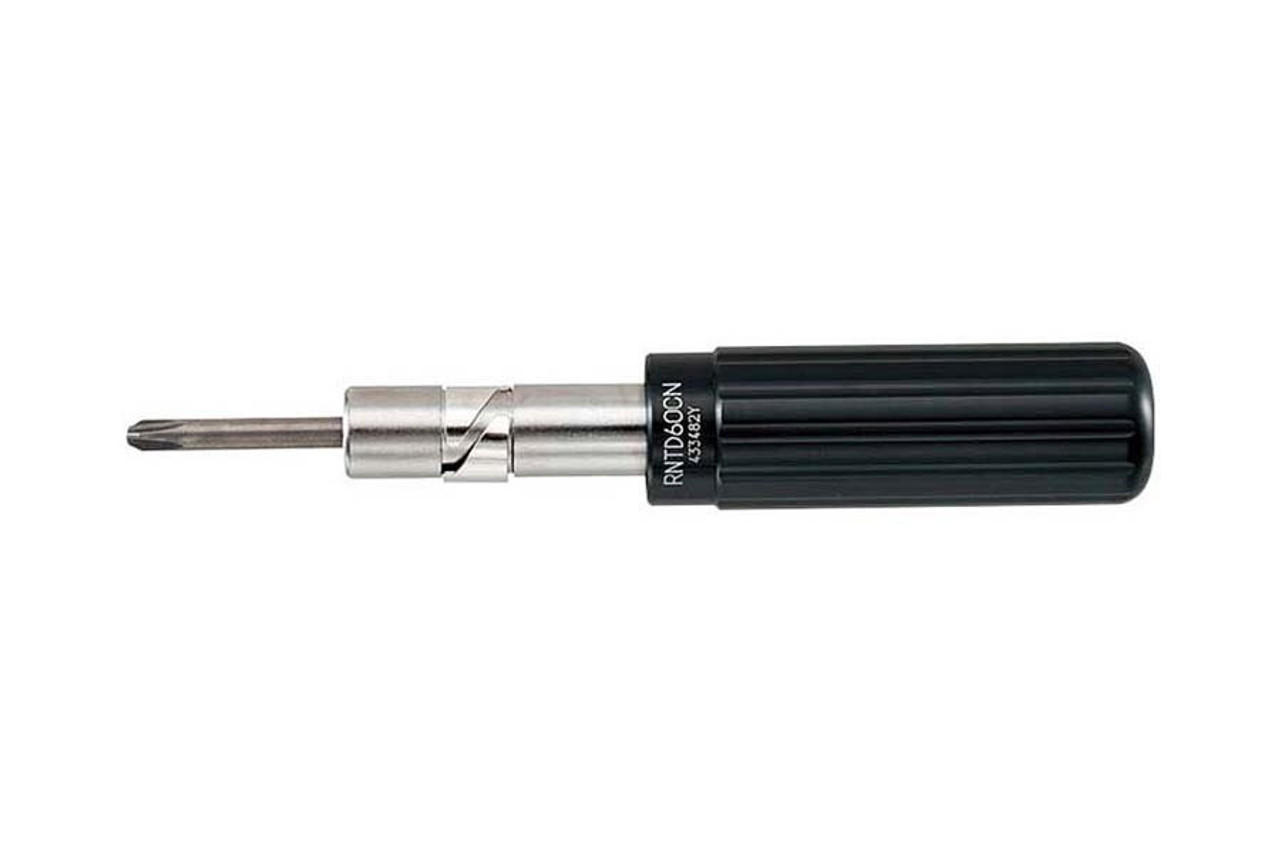

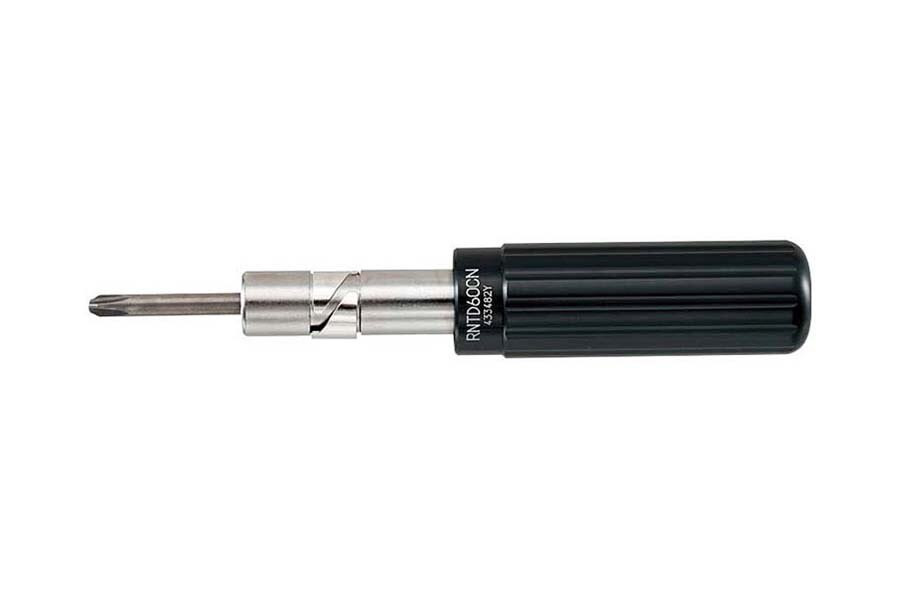

The Tohnichi RNTD120CN preset torque screwdriver accepts universal 1/4 inch drive bits and can be preset in an English range of 4 - 10 In Lbs or metric range of .4 - 1.2 Nm. If you require an option with a higher preset range, take a look at the Tohnichi RNTD260CN preset torque screwdriver.
Features
- Preset torque screwdriver with rotary-slip mechanism to prevent over-tightening.
- Accuracy ± 3%
- Preset style is ideal for applications which require the same torque setting such as assembly work.
- No external scale adjustment means torque set cannot be inadvertently changed making for more secure torque setting.
- Supplied with no torque set. Requires adjusting key and tester to set torque value.
- Preset torque service can be requested at time of order for a nominal fee.
- Enhanced reliability and durability by adopting toggle clutch torque mechanism.
- User will sense "click" at set torque. If user continues past the click, the tool will ratchet without applying additional torque.
- RNTD120CN comes with resin handle
- Accepts standard 1/4 hex root bits. (sold separately)

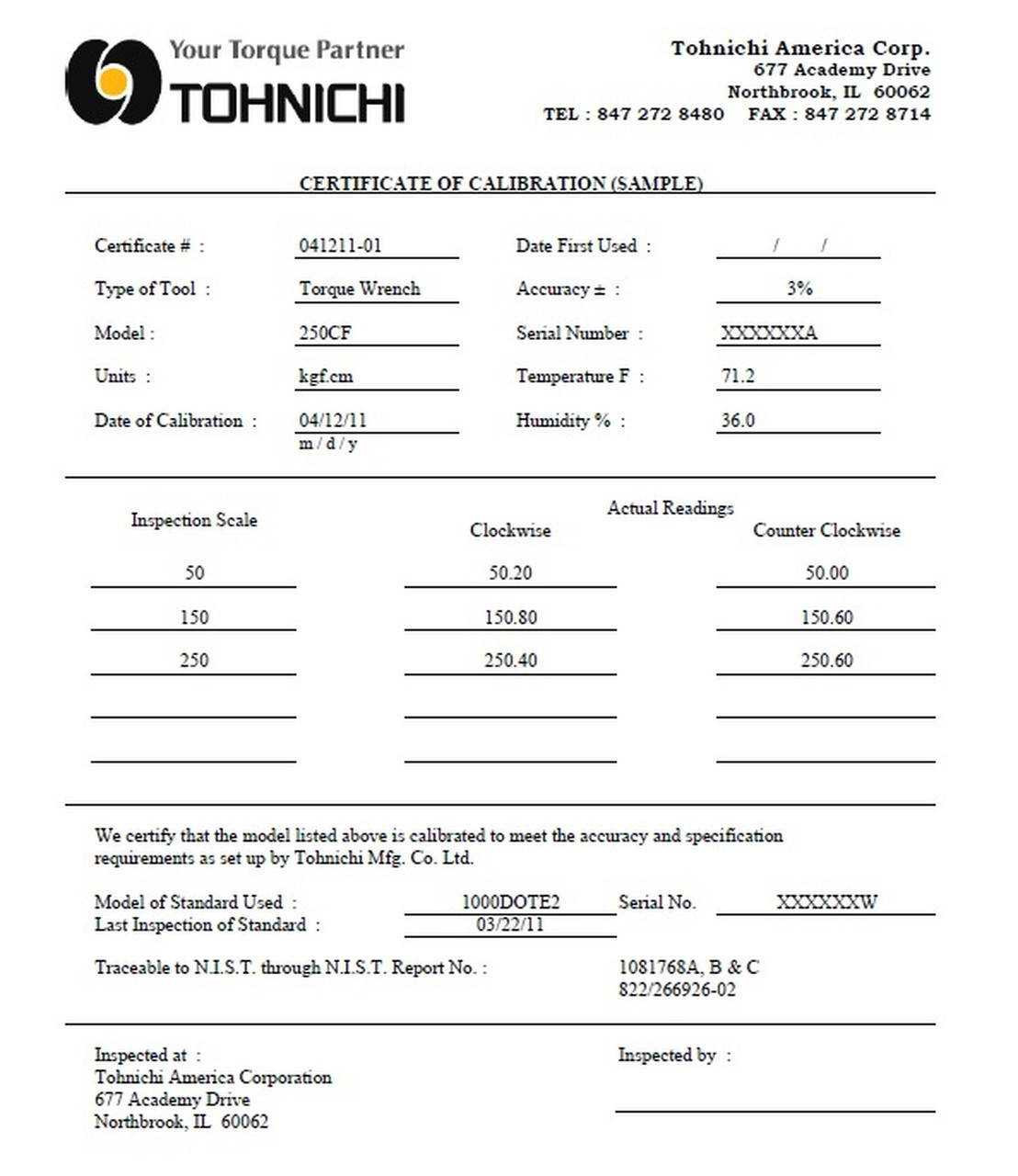

- Certificate of calibration traceable to NIST included.
Specifications
| Accuracy ± 3% | ||||||||
| MODEL | RNTD120CN | |||||||
| TORQUE RANGE [cN • m] | MIN.~MAX. | 40~120 | ||||||
| TORQUERANGE [kgf • cm] | MIN.~MAX. | 4~12 | ||||||
| TORQUE RANGE [lbf • in] | MIN.~MAX. | 4~10 | ||||||
| APPLICABLE SCREW | SMALL SCREW | (M3.5) | ||||||
| TAPPING SCREW | M3(M3.5) | |||||||
| DIMENSION [mm] | OVERALL LENGTH | L' | 110 | |||||
| GRIP | D1 | 24 | ||||||
| BODY COLOR | Black | |||||||
| BODY | D4 | 11 | ||||||
| L1 | 24 | |||||||
| L2 | 76 | |||||||
| WEIGHT [kg] | 0.11 | |||||||
Made in Japan
Warranty
All Tohnichi products are thoroughly checked and tested at the factory before shipment. The accuracy of each tool should be as stated for each model as a percentage of reading unless otherwise noted. Hand tool durability is based on repeated movement tests over a minimum of 100, 000 cycles by a durability testing machine. Should defects due to faulty materials and workmanship develop within one (1) year from the date of sale, it will be repaired and put in workable condition or replaced free of charge if returned to Tohnichi with proof of purchase. The warranty is not valid if the product has been misused, tampered with, or abused.Product Videos
Videos Hide Videos Show Videos
Custom Field
Drive Size 1/4 Inch
Range In Lbs 4 - 10
Range Nm .4 - 1.2
Accuracy 3%
Made In Japan
